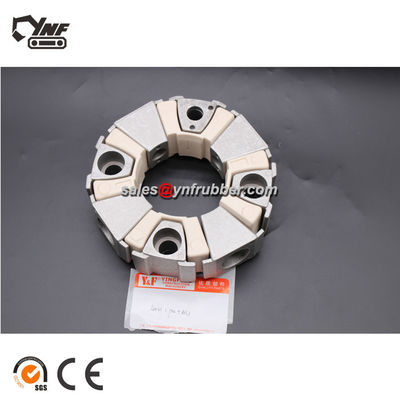

White Color Excavator 40H Rubber Coupling Standard Or Nonstandard
flexible couplings
,rubber couplings
White Color Excavator 40H Rubber Coupling Standard Or Nonstandard
1.Size of the rubber coupling we supply:
CF-H series:
CF-H-025, CF-H-030, CF-H-040, CF-H-045, CF-H-050, CF-H-090, CF-H-110, CF-H-160, CF-H-240
CF-A series couplings: PAT 778322 3683648 2019608 D48407
Rubber Coupling Size4 CF-A-004-O0, CF-A-004-S0, Size8 CF-A-008-O0, CF-A-008-S0, Size16 CF-A-016-O0, CF-A-016-S0, Size25 CF-A-025-O0, CF-A-025-S0, Size28 CF-A-028-O0, CF-A-028-S0, Size30 CF-A-030-O0, CF-A-030-S0, Size50 CF-A-050-O0, CF-A-050-S0, Size80 CF-A-080-S0, CF-A-080-O0, Size90 CF-A-090-O0, CF-A-090-S0, Size140 CF-A-140-S0, CF-A-140-O0, Size200 CF-A-200-O0, CF-A-200-S0, Size250 CF-A-250-O0, CF-A-250-S0, Size400 CF-A-400-S0, CF-A-400-O0
Bowex KTR Kupplungs Replacement: D48407 Rhine
48FLE-PA 6.5”, 48FLE-PA 7.5”, 65FLE-PA 8”, 65FLE-PA 10”, 70FLE-PA, 80FLE-PA, 100FLE-PA, 125FLE-PA, 200FLE-PA
Appliion Range: Excavator Engine Drive Hydraulic Pump, Digger Power Take-off, Road Roller power transmission, Applied in Engine engine flywheel to mount on hydraulic pump shaft.
2.Coupling Appliion Technical Data
| Hydraulic Pump Drive COUPLING “ CF-H ” SERIES TECHNICAL DATA | |||||||||
| SIZE | CF-H-30 | CF-H-40 | CF-H-50 | CF-H-110 | CF-H-140 | CF-H-160 | |||
| TECHNICAL DATA | |||||||||
| DESCRIPTION | SYMBOL | UNIT | 500 | 600 | 800 | 1200 | 1600 | 2000 | |
| Nominal Torque | Tkn | Nm | |||||||
| Maximum Torque | Tkmax | Nm | 1400 | 1600 | 2000 | 2500 | 4000 | 4000 | |
| Maximum Rotational speed | Nmax | Min-1 | 4000 | 4000 | 4000 | 4000 | 3600 | 3600 | |
| Power Transmission Rubber COUPLING CF-A SERIES TECHNICAL DATA | |||||||||
| SIZE | Size 4 | Size 8 | Size 16 | Size 25 | Size 30 | Size 50 | Size 140 | ||
| TECHNICAL DATA | |||||||||
| DESCRIPTION | SYMBOL | UNIT | 50 | 100 | 200 | 315 | 500 | 700 | 1700 |
| Nominal Torque | Tkn | Nm | |||||||
| Maximum Torque | Tkmax | Nm | 125 | 280 | 560 | 875 | 1400 | 2100 | 8750 |
| Maximum Rotational speed | Nmax | Min-1 | 7000 | 6500 | 6000 | 5000 | 4000 | 4000 |
3600 |
3.Other part number:
| 215/11480 | Pump assembly |
| 20/925310 | Pump main |
| KRJ3449 | Mounting flange |
| JRJ0213 | Coupling pump drive |
| KRJ3451 | Coupling rubber |
| KRJ2657 | Pin special |
| 01421200-01421599 | 9812/5020 |
| 20/925770 | Pump main hydraulic |
| 332/P2044 | Flange pump mounting |
| 332/P2047 | Coupling pump |
| 00712002-00712500 | 9802/5900 |
| KSJ1401 | Hub coupling |
| KSJ1440 | Coupling pump |
| KSJ1404 | Capscrew |
| 6079/0404R | Pin spring |
| KSJ1857 | Pump hydraulic |
| KSJ1998 | Pump hydraulic |
| 00712501-00712951 | 9802/5910 |
| 00712501-00712951 | 9802/5910 |
| KSJ0050 | pump hydraulic |
| KSJ1901 | Plate |
| 6079/0607 | Pin spring |
| KSJ2582 | Coupling pump |
4.Product Show:
