PC05-5C Wheel Excavator Coupling Oldham Jaw Elastic Coupling Gear
PC05-5C Wheel Excavator Coupling
,Elastic Gear Excavator Coupling
,Natural Rubber Excavator Coupling
PC05-5C Wheel Excavator Coupling Oldham Jaw Elastic Coupling Gear
Product Description:
Part Name | Hydraulic Pump Coupling |
| Model No | PC05-5C |
HS Code | 8483600090 |
| Material | High Temperature Rubber, Natural Rubber |
Inner Packing | Shrink Film |
egory | Construction machinery parts |
| Mark | According to customer needs |
| Appliion | Excavator |
| Quality | Control-strict 100% test |
Coupling egory | Rotary Couplings |
After-sales Service | Online Support |
Packaging Details | Neutral Package |

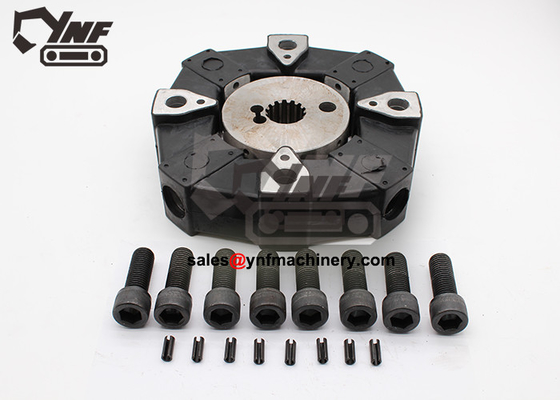

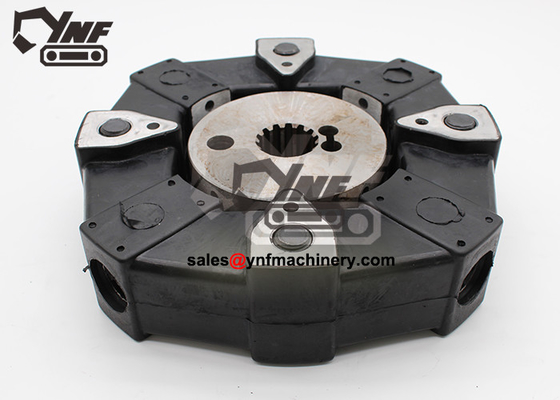

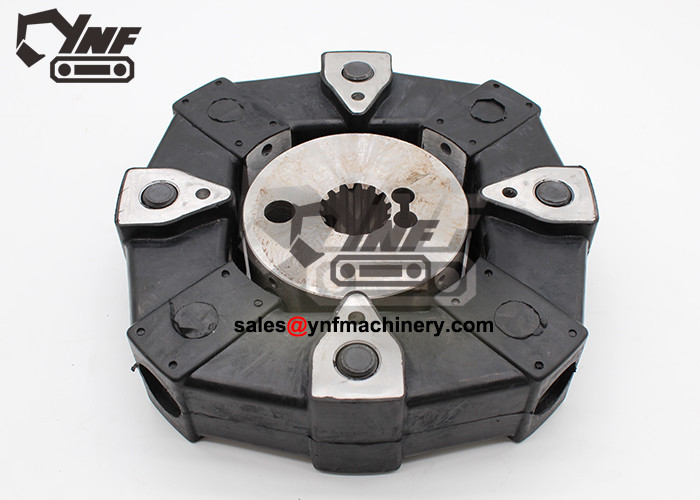

Product show as below:
Contact details
YINGFENG CONSTRUCTION MACHINERY LIMTED
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
More Products:
| 20M-60-31111 | TANK | Inquire | 1 | SN: 2501-3100 |
| 07056-10045 | STRAINER | Inquire | 1 | SN: 2501-@ |
| 07051-20000 | CAP | Inquire | 1 | SN: 2501-@ |
| 07051-00003 | GASKET | Inquire | 1 | SN: 2501-@ |
| 20N-60-11141 | GAUGE | Inquire | 1 | SN: 2501-@ |
| 07044-12412 | PLUG | Inquire | 1 | SN: 2501-@ |
| 07002-02434 | O-RING | Inquire | 1 | SN: 2501-@ |
| 20M-60-31140 | STRAINER | Inquire | 1 | SN: 2501-@ |
| 20M-60-31210 | FLANGE | Inquire | 1 | SN: 2501-3001 |
| 07000-02080 | O-RING | Inquire | 1 | SN: 2501-3001 |
| 01010-51025 | BOLT | Inquire | 3 | SN: 2501-3001 |
| 01602-21030 | WASHER | Inquire | 3 | SN: 2501-3001 |
| 01010-51020 | BOLT | Inquire | 4 | SN: 2501-3001 |
| 01602-21030 | WASHER | Inquire | 4 | SN: 2501-3001 |
| 20M-60-31220 | FILTER ASS'Y | Inquire | 1 | SN: 2501-@ |
| 20M-60-31240 | HEAD | Inquire | 1 | SN: 2501-@ |
| 20M-60-31230 | CARTRIDGE ASS'Y | Inquire | 1 | SN: 2501-@ |
| 20M-60-31250 | CARTRIDGE | Inquire | 1 | SN: 2501-@ |
| 20M-60-31260 | PACKING | Inquire | 1 | SN: 2501-@ |
| 20M-60-31181 | FLANGE | Inquire | 1 | SN: 2501-3100 |
| 07000-03025 | O-RING | Inquire | 1 | SN: 2501-3100 |
| 01010-50825 | BOLT | Inquire | 2 | SN: 2501-3100 |
| 01602-20825 | WASHER | Inquire | 2 | SN: 2501-3100 |
| 20M-60-31270 | ELBOW | Inquire | 1 | SN: 2501-@ |
| 20M-60-31310 | COVER | Inquire | 1 | SN: 2501-3100 |
| 01010-50820 | BOLT | Inquire | 4 | SN: 2501-3100 |
| 01602-20825 | WASHER | Inquire | 4 | SN: 2501-3100 |
Coupling information:
1. A rubber cylindrical pin elastic coupling, which comprises a main and driven half coupling, is characterized in that: the inner hole of the driving half coupling 4 is connected with the driving shaft, and its large outer diameter part is inserted into the shaft. In the large inner hole of the driven half-coupling 1, the small inner hole of the driven half-coupling 1 is connected with the driven shaft, and the large inner hole is sleeved on the large outer diameter of the driving half-coupling 4. The parts of the 4-phase sleeves are not in direct contact with each other, leaving a radial gap of 0.3-1.5mm on one side and an axial gap of 1mm. The inner hole of the half-coupling has semi-circular holes evenly distributed on the circumference of the same indexing circle diameter. The number can be selected between 4 and 12, and the axis of the semi-circular hole is parallel to the axis of rotation of the coupling. When the main and driven semi-couplings are assembled on the two shafts of the same axis, these semi-circular holes are assembled together. 4 to 12 cylindrical holes, the intermediate medium for transmitting torque and motion, connecting the main and driven half-couplings - the rubber cylindrical pin 2 is installed in the cylindrical holes formed by these semi-circular holes. On the end face, there are four screw holes and four hexagon socket head cap screws 5, which press the two half-circle baffles 3 on the end face of the driven half-coupling.
