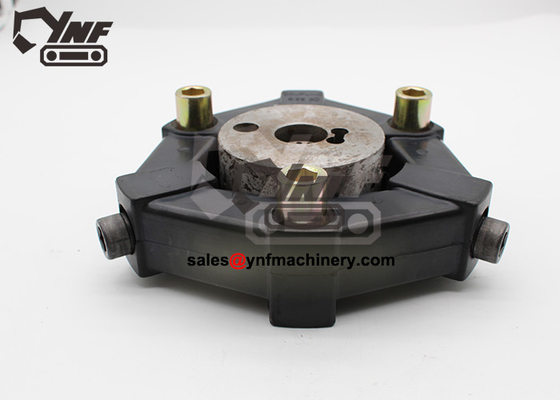

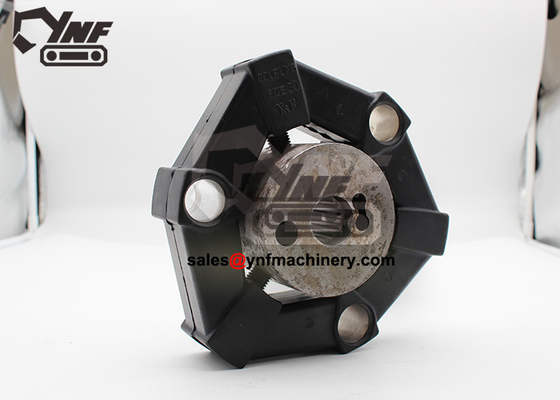

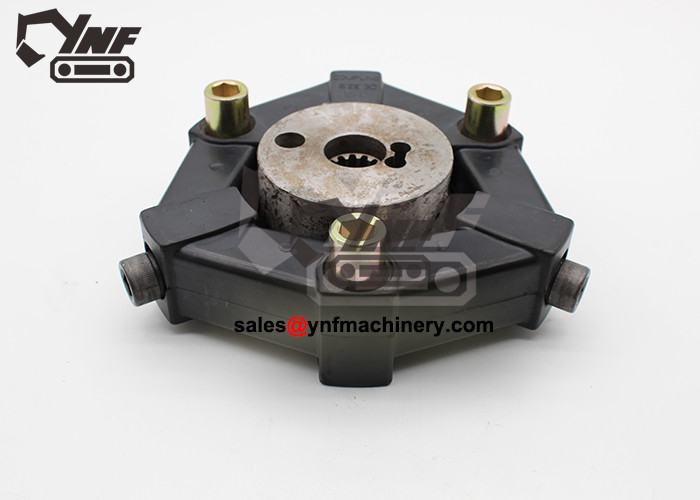

Natural Rubber Black Excavator Coupling Fits 200DLC FYB00000115
Natural Rubber Black Excavator Coupling
,200DLC Excavator Coupling
,FYB00000115 Excavator Coupling
Natural Rubber Coupling High Quality Black Excavator Coupling Fits 200DLC
Description :
|
Part Number |
FYB00000115 |
|
Centaflex |
A/AS-Series |
|
HS Code |
8483600090 |
|
Specifiion |
Standard |
|
Coupling Structure |
Helical Coupling |
|
Coupling Torque |
No |
|
Instructions |
Manual Installation |
|
Suitable Brand |
Komatsu, erpillar, Volvo, Kato,Hyundai,John Deere, Doosan |
|
Coupling Assy |
Element +Insert +Hub |
Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
Pos. Part No Qty Parts name Comments
0. 9262320 [1] Hydraulic Pump SUB FOR (1) 9262319
0. PG200134 [1] Hydraulic Pump Reman REMAN FOR 9262320
1. 1033158 [1] Housing
5. 3063840 [1] Gear SUB FOR (1) AT202414 OR (1) 4099290
6. 3055594 [1] Shaft SUB FOR (1) AT202412
10. 6008X [2] Ball Bearing SUB FOR (1) 958740 OR (1) JD8514
11. 962002 [1] Snap Ring SUB FOR (1) TH100483
12. 40M7090 [1] Snap Ring SUB FOR (1) 991725
13. 37H99 [2] Screw 0.100" X 1/4" SUB FOR (1) M492564
17. 9266178 [1] Regulator COMPONENTS ON SEPARATE PAGE
18. 9266179 [1] Regulator COMPONENTS ON SEPARATE PAGE
19. 9218005 [1] Pump COMPONENTS ON SEPARATE PAGE
19. A811085 [1] O-Ring
21. 19M8337 [2] Screw M10 X 30 SUB FOR (1) M341030
22. 12M6791 [2] Lock Washer 10.200 MM SUB FOR (1) 984054
23. 4114402 [2] Washer SUB FOR (1) TH102181
27. 4631943 [1] Line
30. 4293950 [2] Fitting SUB FOR (1) AT160584
30A. M800650 [1] Packing SUB FOR (1) 957366
33. FYB00000114 [1] Coupling SUB FOR 4700170
33A. 4702172 [1] Hub SUB FOR 4463992 OR 4687331, ALSO ORDER (2) 4702173
33B. ........ [2] Set Screw USE WITH 4463992 OR 4687331, 4334899 NLA, SUB FOR 4702173, ALSO ORDER (1) 4702172
33B. 4702173 [2] Set Screw USE WITH 4702172
33C. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR (1) 4101345 OR (1) TH4101345
33D. 4463993 [4] Insert SUB FOR (1) TH4463993
33E. 4334894 [4] Bolt
33F. FYB00000115 [1] Coupling SUB FOR4654760
34. 34M7061 [2] Spring Pin 8 X 20 MM SUB FOR (1) 4099290
36. 8058352 [1] Gasket
37. 19M7489 [6] Cap Screw M16 X 45 SUB FOR (1) J901645 OR (1) TH101724
38. 12H294 [6] Lock Washer 5/8" SUB FOR (1) A590916
43. 4310055 [1] Seal SUB FOR (1) AT202443
44. 40M7090 [1] Snap Ring SUB FOR (1) 991725
61. FYB00001633 [1] Gauge SUB FOR 4438059 AND (1) TH4438059
62. 9743977 [1] Dipstick Tube SUB FOR (1) AT214406
63. 9742779 [1] Gasket SUB FOR (1) AT214401
64. 19M7647 [2] Screw M8 X 16 SUB FOR (1) AT217709 OR (1) M340816
83. 15H621 [1] Elbow Fitting 3/4" SUB FOR (1) 94-0649
84. 4645330 [1] Plug
86. 4234782 [1] Plug SUB FOR (1) AT200990
87. 15M7036 [1] Drain Plug SUB FOR (1) TH101813 OR (1) 4092534
87A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543" X 3/32") SUB FOR (1) 4509180
90. 4451036 [1] Seal Kit SUB FOR (1) TH4451036
Coupling Information:
The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
