NBR Rubber Sealing O Ring Oil Resistant Oring For Kubota Excavator
NBR Rubber O Ring
,NBR Excavator O Ring
NBR Rubber Sealing O Ring Oil Resistant Oring For Kubota Excavator
Quick Info.
| Size | Metric Standard |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Delivery | Within 1-3 working days after payment is received |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| Feature |
Resistance to abrasion,tear,oil, weather,flame,oxygen, high temperature etc |
| Sample | Free Available |
| Advantage | Prompt Delivery |
| Reliability | High |
| Chemical Compatibility | Excellent resistance to air, oxygen, hot and cold water, lower alcohols and vegetable oils. Good resistance to heat, weathering, and water/glycol hydraulic fluids,excellent electrical properties.General industrial applications are often limited by high gas permeability, low tensile strength and poor resistance to tear and abrasion. |
| Place of Origin | China |
Other parts we can supply.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
What is an o-ring?
An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from which the "O" in its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They simplicity, convenience, and small installation space. As long as the groove design and material selection are correct, and the operating conditions are within the temperature range of the rubber material, the seal can have a long-term sealing effect in the static or dynamic seal.
The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation: outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).
Material(NBR):
Good mechanical technological parameters.e.g.high abrasion resistance,low gas
permeability and good resistance to mineral oil based lubricating oils and greases,
hydraulic oils,highly non-flammable hydraulic fluids HFA,HFB,HFC,silicone oils and
greases,water up to approx.80°C.NBR is generally not resistant to polar solvents,
glycol-based brake fluids and highly non-flammable hydraulic fluids HFD.It has a low
resistance to ozone ,weathering and ageing.
In most hydraulic applications this has no effect because the hydraulic seals are installed
internally in the hydraulic components.
Temperature:-30~+120°C
Application:NBR is frequently used in the hydraulic field due to its good mechanical
characteristics and resistance to mineral oil based lubricating oils and greases.
1. Q: How about the payment terms?
We accept T/T, Western Union, Paypal..
2. What is your main product range?
We are professional in designing, developing and manufacturing rubber products. For example,coupling, o rings, oil seals, piston and rod seals, rubber shock absorbers and custom rubber products.
3. Q: Which shipping method will be used for a delivery?
DHL, FedEx, TNT, UPS, EMS ... By seal or by air are also available.
4. Q : How does your factory do regarding quality control?
1). Our material properties are relatively stable, products' quality be control.
2). Skilled workers care every details in handling producing and packing processes;
3). Quality Control Department specially responsible for quality checking in each process.

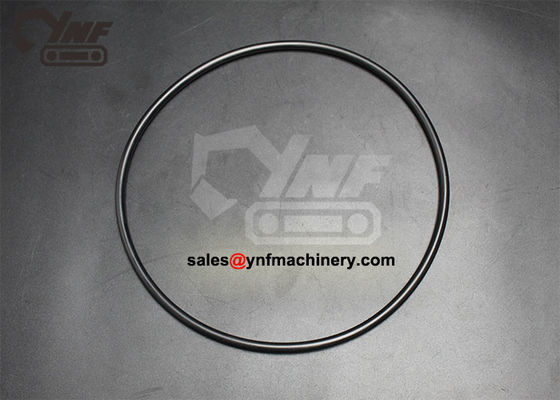

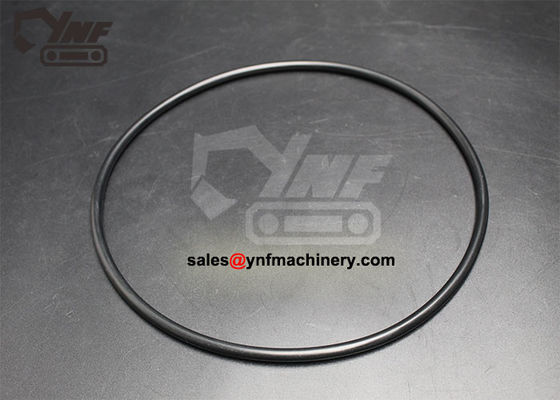

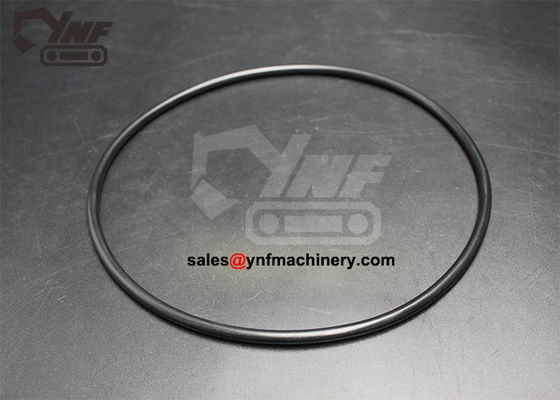

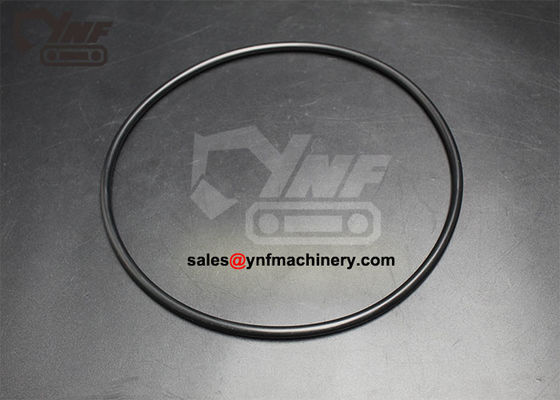

Picture Show:
