Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator

Category:
Excavator Coupling
Payment Method:
T/T, Western Union, Escrow, Paypal
Specifications
Material:
Hytrel
Quality:
AAA
Logo:
Y&F / Centaflex / Miki Pulley
Size:
All Type Size
Appliion:
Hyd.Pump Shaft To Engine Flywheel
Appliion Machines:
Excavator Engine Driven
High Light:

flexible couplings

,

rubber couplings

Introduction

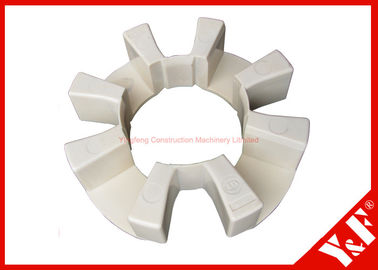

Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors



JURID Excavator


Product Descrition:

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Y&F

  • Model Number: Centaflex CF-H-90

  • Material: DuPont Hytrel

  • Sales type: Retail, Wholesale

  • Mark: According to customer needs

  • Appliion: Construction machinery, ships, generators, compressors

  • Quality: Controlstrict 100% test

  • Mass production: Booking

  • Available: In stock

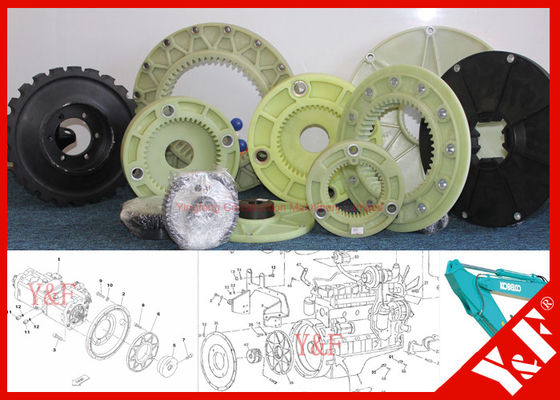

Y&F manufactures flexible couplings, rubber and various other transmission products. This elastomer torsional coupling base element replaces the base element on Lovejoy LF series / Mkipulley Centaflex CF series torsional coupling assemblies. It is made of high temperature rubber (HTR) for transferring and absorbing shock load and reducing wear on both shafts.



Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator

Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator







Our high quality material:



       1>Mkipulley Centaflex CF-A Series-----Natural Rubber(NR), High Temperature Rubber (HTR)

       2>Mkipulley Centaflex CF-H Series-----HTR, Hytrel

       3>Lovejoy LF series-----------------------NR, HTR, Hytrel

Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator



Specifiions:



      *Widely used in construction machines

      *Made of natural rubber, no unbearable smell
      *Over 25 years of industry experience

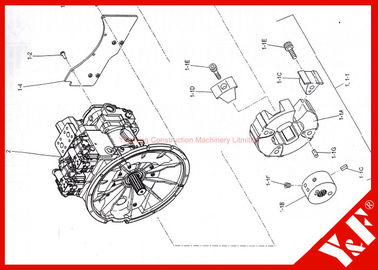

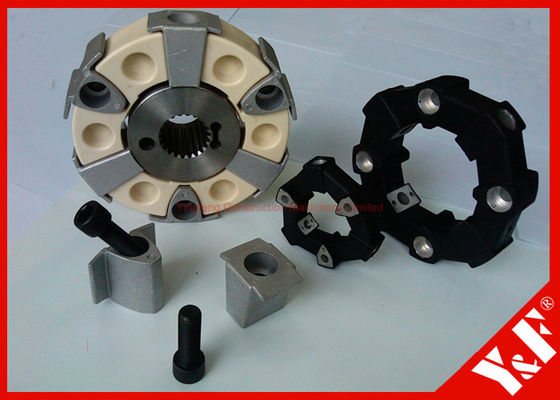

Assembly ( When Using CENTA-LOCK ):



(1) Press the spring pin into the cylindrical hub (except for coupling size 008), and then lock aluminum insert R into the cylindrical hub.

(2) Mount the cylindrical hub (clamping hub) onto the spline shaft, and then tighten the clamping screw to lock.

(3) a. Coupling sizes 008 and 016 Lock the bushing onto the flange hub (flywheel side). Push the element into the cylindrical hub.

      Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator

b. Coupling sizes 030, 040, 050, 090, 110, 160, and 240 Press the spring pin into the flange hub (flywheel side), add aluminum insert A to the element, and then lock it to the flange hub (flywheel side).



         Durable Centaflex CF-H-90 Excavator Coupling Element for Generators , Compressors JURID Excavator

Product Features:



· For use with Lovejoy LF Series Torsional coupling assemblies (sold separately)

· High temperature rubber (HTR) for transferring and absorbing shock load

· Electrical isolating to prevent electrical arcing and circuit shortages

· Attaches to flanged hub, flywheel adapter plate, or flywheel on engine side and cylindrical hub on driven equipment side

· Flexes up to 3 degrees to compensate for angular misalignment of coupled shafts





Packaging & Shipping:



Packaging: Customized packing provided
Shipping: Port:Guangzhou
Delivery time: 1-2 days after received the payment







Send RFQ
Stock:
MOQ:
5 SETS
