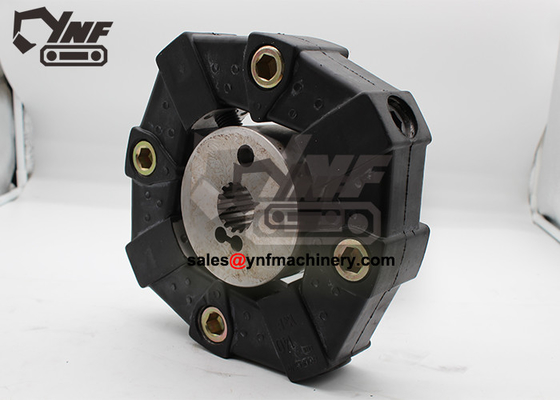

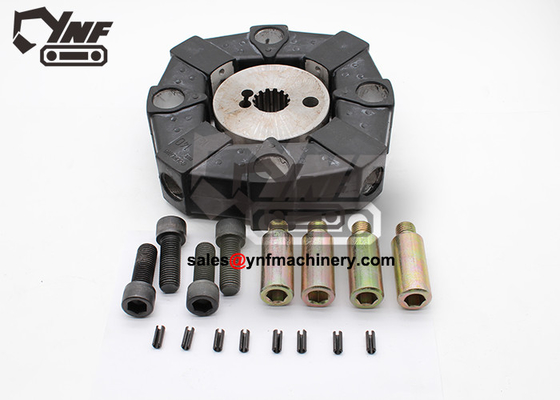

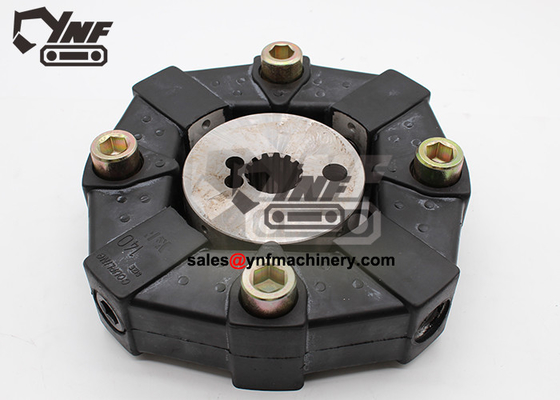

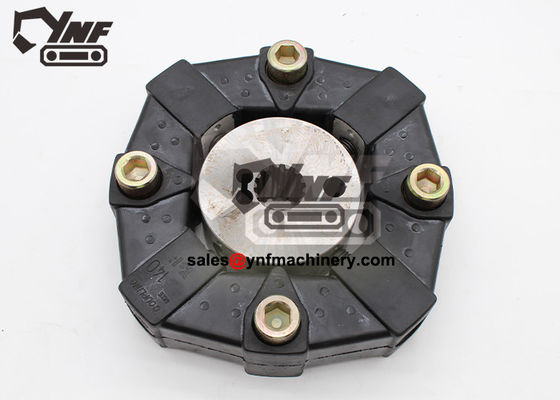

Excavator Coupling 4LK00001-UP For erpillar Rubber High Quality Parts 8J-5834

Description :

Products Show

Packaging & Delivery

Products imformation:
1. 4T-1942 [2] LINK-PISTON
2. 2J-0157 [2] SEAL-O-RING
3. 6D-7889 [2] SEAL-O-RING
4. 9J-7243 [1] BOLT-ANGLE STOP
5. 3G-6019 [1] BOLT-ANGLE STOP
6. 4T-1941 [2] INSERT-BEARING
7. 8J-6276 [2] RETAINER
8. 1S-8517 [2] RING-RETAINING
9. 9S-8008 [3] PLUG-O-RING
3D-2824 [3] SEAL-O-RING (23.47MM ID)
10. 9M-2092 [2] SEAL-O-RING
11. 4T-2508 [2] COVER-TRUNNION
12. 2D-9191 [2] CONE-ROLLER BEARING
13. 0S-1588 [14] BOLT (3/8-16X1.25IN)
5M-2894 [14] WASHER
14. 8J-0220 B [4] SHIM (.127MM THK)
8J-0221 B [4] SHIM (.051MM THK)
15. 1U-1655 [2] SEAL-LIP TYPE
16. 7H-2444 [2] SEAL (75.6MM ID)
17. 3G-4604 [1] SHAFT
18. 7J-8893 [1] CONE-ROLLER BEARING
19. 9J-6403 [1] RETAINER-SEAL
20. 2D-9190 [2] CUP-ROLLER BEARING
21. 5B-5821 [1] PIN-DOWEL
22. 4T-2509 [1] SWASHPLATE
23. 1T-0284 [3] BOLT-SOCKET HEAD
24. 8J-0137 [1] BODY-PUMP
25. 7J-8894 [1] CUP-ROLLER BEARING
26. 1A-2223 [2] DOWEL
27. 1D-5121 [2] NUT-JAM (7/8-14 THD)

Products instruction:

Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.

Company information:

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
