2WM00001-00499 Flexible Coupling For 307 2WM erpillar Hydraulic Engine Parts
2WM00001-00499 Flexible Coupling For 307 2WM erpillar Hydraulic Engine Parts
Description :
| Part Name | Hydraulic Pump Coupling |
|
Coupling Type |
Coupling Inserts |
|
Machine model |
2WM00001-00499 |
|
Coupling Torque |
No |
| Material | Rubber |
| Color | Black |
| egory | Construction machinery parts |
| Packing | Neutral Package |
|
Sales type |
Retail, Wholesale |
|
Available |
In Stock |
|
Suitable Brand |
Komatsu, erpillar, Volvo, Kato,Hyundai |
| MOQ |
For many products, we don't have MOQ limited. |
|
Payment Methods |
Bank transfer, Western Union, Credit Card,Paypal |
|
Performance |
Engine Power Transmission |
| Our Services: | One-stop purchas |

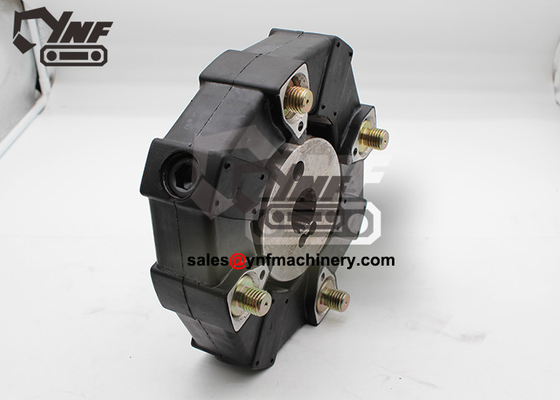

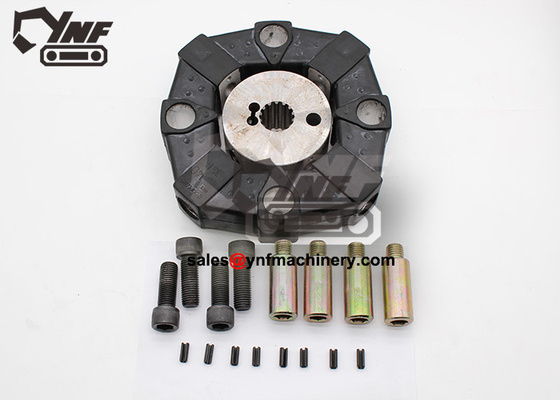

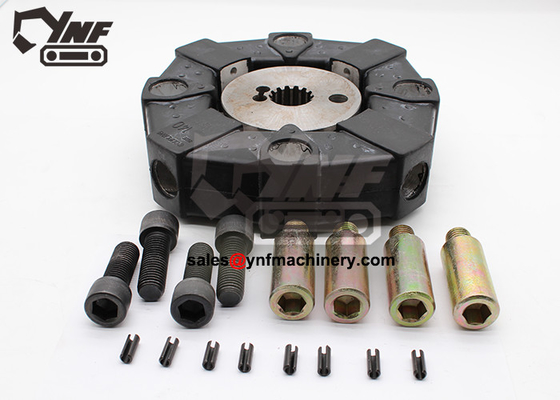

Products Show:
Packaging & Delivery:
| Packaging Details | Plastic bag, carton |
| Delivery Detail | Within 3 workingdays after payment |
Products imformation:
| Pos. | Part No | Qty | Parts name |
| 1. | 8C-5196 | [1] | SEAL-O-RING |
| 2. | 085-5557 | [1] | RING-BACKUP |
| 3. | 085-5559 | [1] | COUPLING |
| 4. | 3T-7529 | [1] | SEAL-O-RING |
| 5. | 8T-1158 M | [2] | BOLT-SOCKET HEAD |
| 6. | 085-5552 | [1] | FRAME |
| 7. | 085-5563 | [1] | PLATE |
| 8. | 085-5555 | [1] | GEAR |
| 9. | 9X-6154 M | [4] | BOLT-SOCKET HEAD |
| 10. | 085-5562 | [4] | BUSHING |
| 11. | 107-6915 | [1] | HOUSING |
| 12. | 085-5556 | [1] | GEAR |
| 13. | 085-5558 | [1] | RING-SQUARE |
| 14. | 094-1875 | [2] | DOWEL |
| 15. | 8T-4224 | [2] | WASHER-HARD (2MM THK) |
Products instruction:
Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.
Company information:
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
