307-A 2PM Excavator Coupling Black Hydraulic Pump Parts 1023747 085-6290
307-A 2PM Excavator Coupling Black Hydraulic Pump Parts 1023747 085-6290
Description :
| Part Name | Hydraulic Pump Coupling |
|
Coupling Type |
Coupling Inserts |
|
Part Name |
Planet Carrier |
|
Coupling Torque |
No |
| Material | Rubber |
|
Outer Packing |
Carton |
| egory | Construction machinery parts |
|
Machinery Test Report |
Provided |
|
Sales type |
Retail, Wholesale |
|
Advantage |
Factory Price |
|
Suitable Brand |
Komatsu, erpillar, Volvo, Kato,Hyundai |
|
Appliion |
Excavator |
|
Payment Methods |
Bank transfer, Western Union, Credit Card,Paypal |
|
Performance |
Engine Power Transmission |
|
Stock Situation |
Always In Stock |

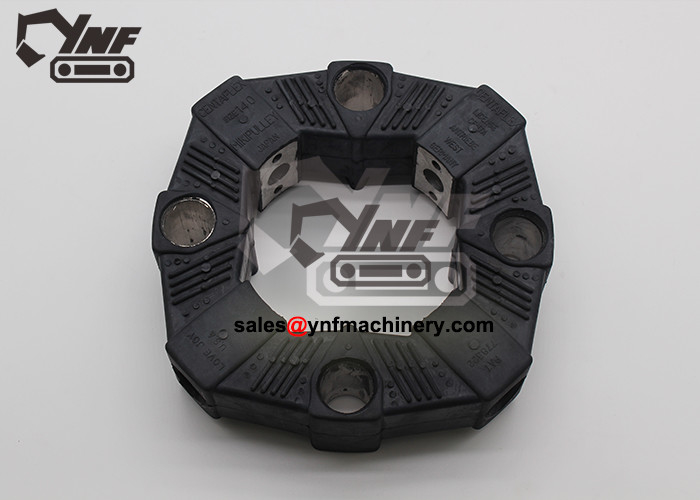

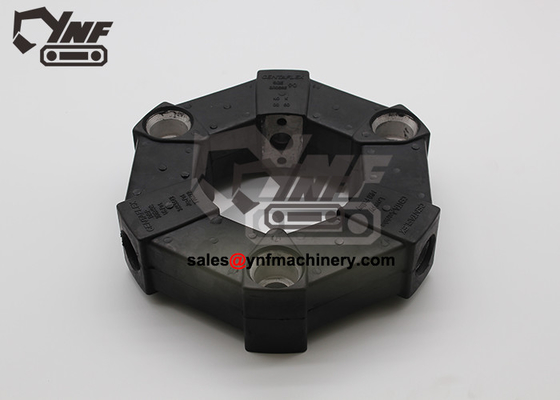

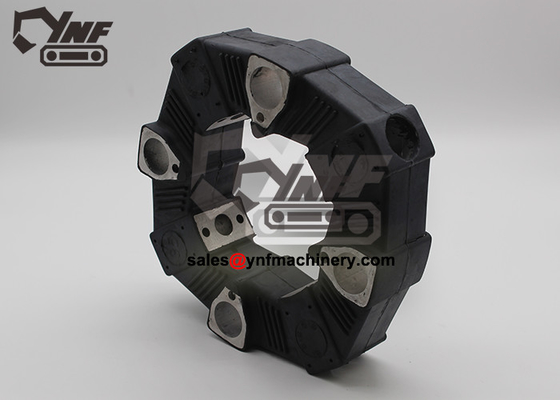

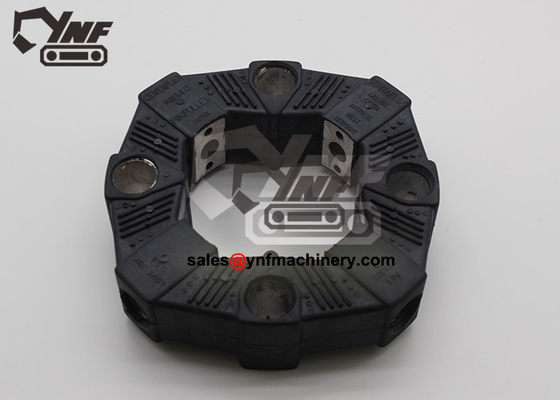

Products Show:
Packaging & Delivery:
| Packaging Details | Plastic bag, carton |
| Delivery Detail | Within 3 workingdays after payment |
Products imformation:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3T-7529 | [1] | SEAL | |
| 2. | 099-2969 | [1] | BUSHING | |
| 3. | 085-6290 | [1] | COUPLING | |
| 4. | 099-2973 | [2] | PLATE | |
| 5. | 085-6294 | [2] | PLATE | |
| 6. | 085-6292 | [4] | BUSHING | |
| 7. | 085-6289 | [1] | GEAR | |
| 8. | 085-6287 | [1] | ||
| 9. | 085-6293 | [2] | PLATE | |
| 10. | 085-6288 | [1] | PLATE | |
| 11. | 9X-2158 | [4] | BOLT (90mm LONG) | |
| 12. | 099-2975 | [2] | GUIDE | |
| 13. | 113-0308 | [2] | SEAL | |
| 14. | 099-2972 | [2] | RING | |
| 15. | 099-2978 | [1] | GEAR | |
| 16. | 085-6291 | [2] | RING | |
| 17. | 094-1875 | [4] | DOWEL | |
| 18. | 8T-1159 | [2] | BOLT (25mm LONG) | |
| 19. | 085-6286 | [1] | FRAME | |
| 20. | 8T-4121 | [2] | WASHER |
Products instruction:
Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.
