Quick Connect Coupling Conbination For Doosan B55W-1 1100397492
Quick Connect Coupling Conbination For Doosan B55W-1 1100397492
Description :
| Part Name | Hydraulic Pump Coupling |
| Part Number | 1100397492 |
| Machine model | B55W-1 |
| Appliion | Construction machinery, ships, generators, compressors |
| Material | Rubber,Iron |
| Color | Black |
| egory | Construction machinery parts |
| Packing | Neutral Package |
| Country of Origin | China |
Quotation | Based on OEM parts or genuine parts, packing, quantity andother requirements |
| Condition | New&OEM Part |
| MOQ | No limited |
Mass production | Booking |
| Warranty | Supply 3 months warranty for the products from the date of arrival |

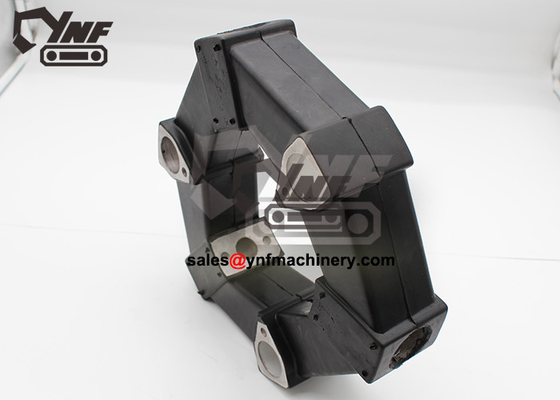

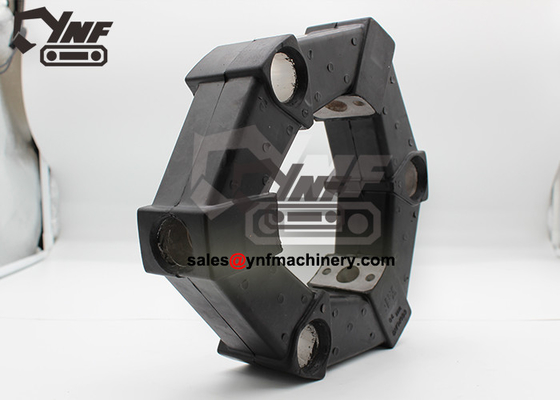

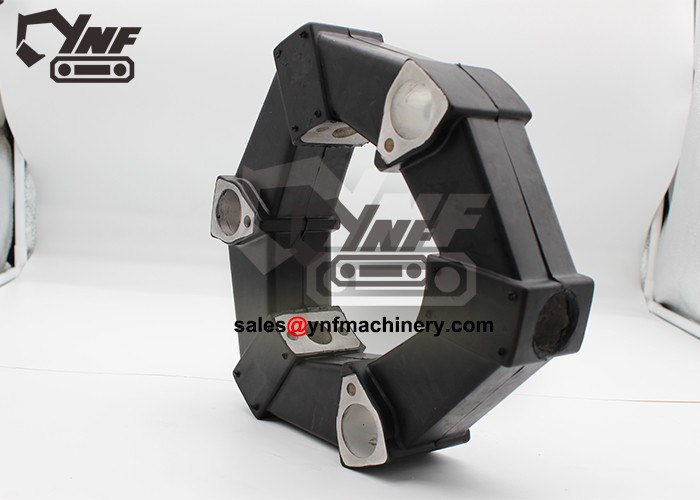

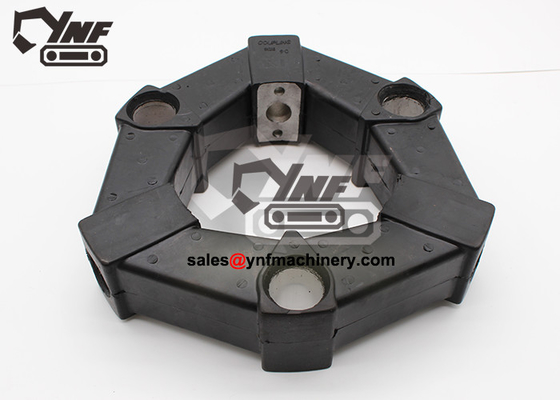

Products Show
Packaging & Delivery
| Packaging Details: | Paper box packing per piece and 40pcs into one carton |
| Delivery Detail: | Within 3 workingdays after payment |
Parts imformation:
| Pos. | Part No | Qty | Parts name |
| 1. | H9309R9326-0 | [1] | PUMP;GEAR |
| 10. | 1164034001 | [1] | PLATE |
| 10. | 1100690627 | [2] | PLATE |
| 11. | 1164035004 | [2] | GUIDE |
| 12. | 1100397492 | [1] | COUPLING |
| 13. | 1100452241 | [1] | BUSH |
| 14. | 1100022822 | [2] | O-RING |
| 15. | 1301163001 | [3] | O-RING 1B P10 9.8×1.9 |
| 15. | 1301163001 | [1] | O-RING 1B P10 9.8×1.9 |
| 16. | 1100026237 | [2] | RING;SQUARE |
| 16. | 1100026237 | [1] | RING;SQUARE |
| 17. | 1100219199 | [2] | RING;SQUARE |
| 18. | 1100452819 | [4] | BOLT;HEX M10×95L |
| 18. | 1301602001 | [1] | BOLT;HEX M10×90L |
| 19. | 1301588006 | [2] | BOLT;HEX SOCKET M10×25L |
| 2. | 1100570835 | [1] | FRAME;FRONT |
| 20. | 1100022804 | [4] | PIN;PARALLEL |
| 20. | 1100022804 | [2] | PIN;PARALLEL |
| 24. | 1300053004 | [1] | O-RING 18.77×1.78 |
| 25. | 1300073008 | [2] | O-RING |
| 26. | 1300205003 | [1] | O-RING 37.77×2.62 |
| 27. | 1300038005 | [1] | O-RING |
| 3. | 1100448792 | [1] | ;GEAR |
| 3. | 1100688514 | [1] | ;GEAR |
| 5. | 1100530194 | [1] | GEAR;DRIVING |
| 5. | 1100572556 | [1] | GEAR;DRIVING |
| 6. | 1100338291 | [1] | GEAR;IDLE |
| 6. | 1100567619 | [1] | GEAR;IDLE |
| 7. | 4100343731 | [2] | SIDE PLATE ASS'Y |
| 7. | 4100540519 | [2] | SIDE PLATE ASS'Y |
Products instruction:
Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.
Company information:
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
