High Quality Centaflex Coupling 30A Rubbershaft Excavator Coupling 4334891
High Quality Centaflex Coupling 30A Rubbershaft Excavator Coupling 4334891
Description :
|
Brand Name |
YNF/Y&F |
|
Centaflex |
A/AS-Series |
|
Coupling egory |
Rotary Couplings |
|
Feature |
High Durability |
|
Coupling Structure |
Helical Coupling |
|
Color |
As Photo |
|
Processing |
Forging |
|
Payment Methods |
Bank Transfer, Western Union, Money Gram, Credit,PayPal |
|
Availability |
Stock |

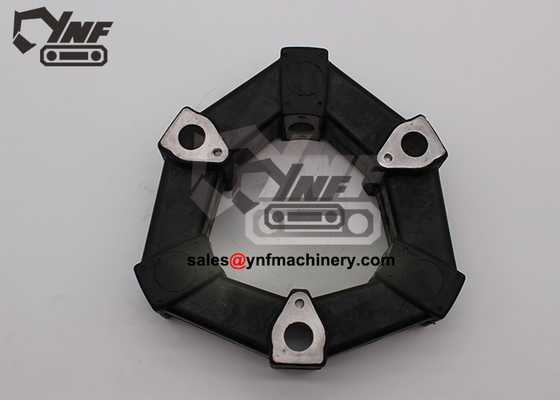

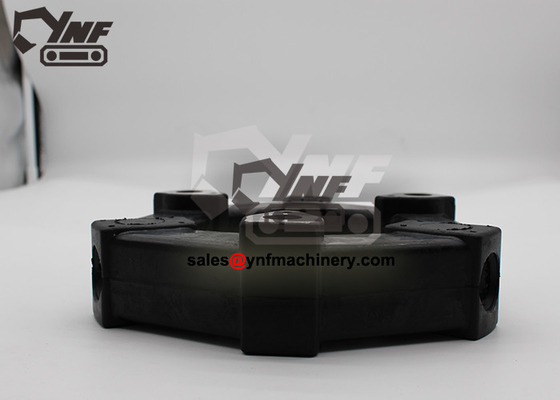

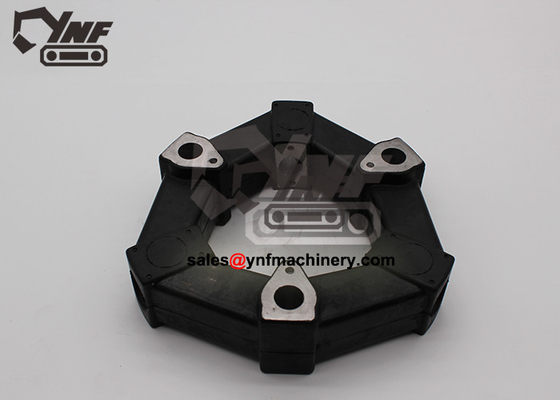

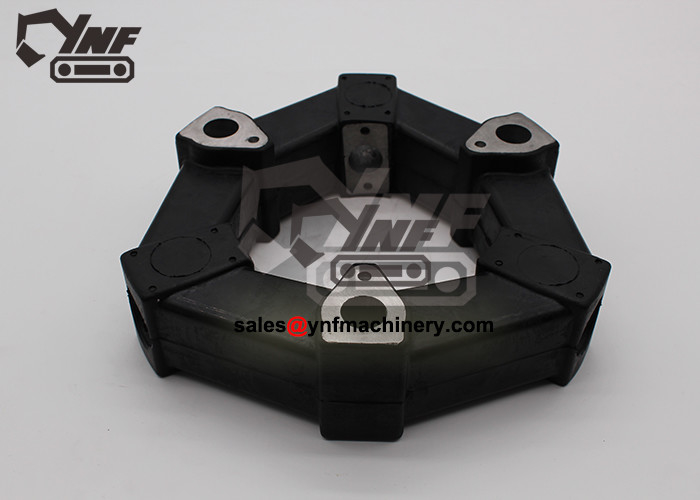

Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
Pos. Part No Qty Parts name Comments
0. 9153026EX [1] Hydraulic Pump Reman REMANUFACTURED; SUB FOR AP35562 WITH ANTI-RUST PREVENTION SUB FOR 9153026, AP34002, AT183679
1. 1022569 [1] Gear SUB FOR AT215841
3. 3070066 [1] Gear SUB FOR AT215864
4. 3055594 [1] Shaft SUB FOR AT202412
5. JD8514 [2] Ball Bearing
6. 962002 [1] Snap Ring SUB FOR TH100483
7. 40M7090 [1] Snap Ring
10. ........ [1] Pump UNIT; NOT AVAILABLE FOR SERVICE AS COMPLETE ASSEMBLY; SEE SPEARATE PAGE FOR COMPONENTS
14. 3070062 [1] Gear SUB FOR AT215862
15. 3070063 [1] Gear SUB FOR AT215863
16. 962002 [2] Snap Ring SUB FOR TH100483
18. 34M7061 [2] Spring Pin 8 X 20 MM
21. T114269 [6] Cap Screw SUB FOR AT215658 AND T114269
22. 12H317 [6] Lock Washer 9/16"
23. 8060011 [1] Gasket SUB FOR AT215995
25. 4340328 [1] Seal SUB FOR AT215907
26. 40M7228 [1] Snap Ring
28. 4276918 [1] Pump SUB FOR AT202122
30. 19M8337 [2] Screw M10 X 30
31. 12M7135 [2] Lock Washer 10 MM SUB FOR 12M6791
32. 4114402 [2] Washer 10.500 X 22 X 3.200 MM (0.413" X 0.866" X 0.126") SUB FOR TH102181
34. 15H621 [1] Elbow Fitting 3/4"
36. 4234782 [1] Plug SUB FOR AT200990
37. 4242263 [1] Dipstick SUB FOR TH112088
39. 9745521 [1] Dipstick Tube SUB FOR AT216029
40. 9742779 [1] Gasket SUB FOR AT214401
41. 19M7647 [2] Screw M8 X 16 SUB FOR AT217709
43. 9134111 [1] Fitting SUB FOR AT203648
43A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543" X 3/32")
53. 4278547 [1] Adapter Fitting SUB FOR AT154349
53A. 4506418 [1] O-Ring 17.800 X 2.400 MM (0.701" X 3/32") SUB FOR U46489
54. 9134110 [1] Fitting SUB FOR AT203649
54A. M800650 [1] Packing
55. 4293950 [2] Fitting SUB FOR TH109468 OR AT160584
55A. M800650 [1] Packing
56. 3071962 [1] Oil Line SUB FOR AT215868
57. 9736515 [2] Clamp SUB FOR AT154545
58. 19M7513 [1] Cap Screw M8 X 30
59. ........ [1] Washer 12M7065 NLA
63. 4340275 [1] Splined Coupling SUB FOR AT215906
63A. 4366376 [1] Hub SUB FOR AT215952
63B. 4702173 [2] Set Screw SUB FOR AT203651 OR 4334899
63C. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR 4101345
Coupling Information:
The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
