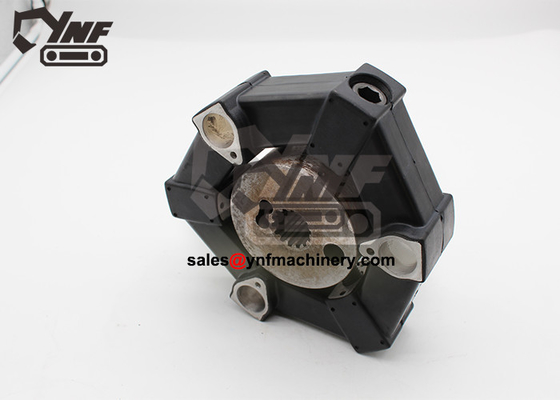

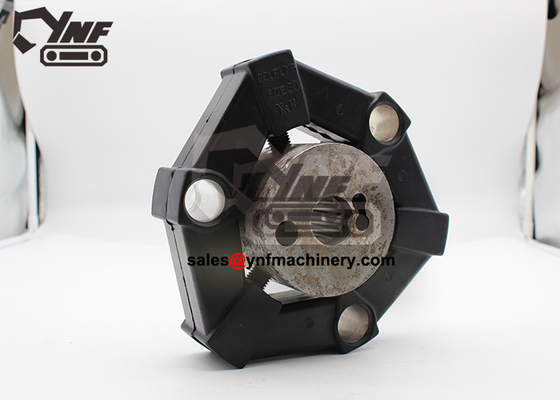

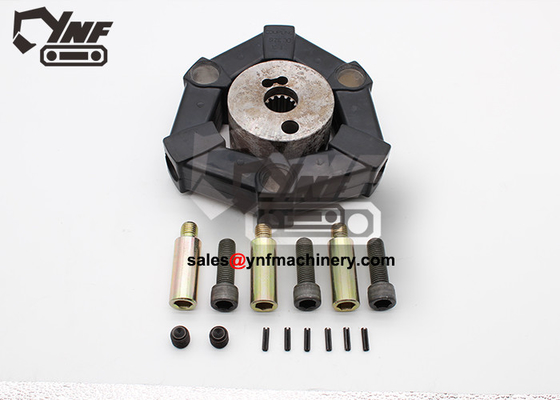

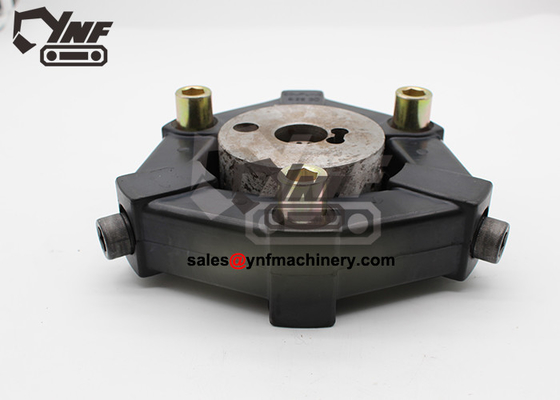

Excavator Filter Excavator Coupling Hydraulic Parts For John Deere 190GW 4682266

Excavator Filter Excavator Coupling Hydraulic Parts For John Deere 190GW 4682266

Description :

Products Show

Packaging & Delivery

More Parts Information:

Pos. Part No Qty Parts name Comments
0. FYB60001350 [1] Pump SUB FOR FYB60000979
1. 9317623 [1] Pump COMPONENTS ON SEPERATE PAGE
4. ........ [1] Pump FYB60000058 NLA COMPONENTS ON SEPERATE PAGE
17. FYB60001274 [1] Regulator COMPONENTS ON SEPERATE PAGE
18. FYB60001275 [1] Regulator COMPONENTS ON SEPERATE PAGE
19. 9218005 [1] Pump STEERING PUMP COMPONENTS ON SEPERATE PAGE
21. 19M8337 [2] Screw M10 X 30 SUB FOR M341030
22. 12M7135 [2] Lock Washer 10 MM SUB FOR 984054
23. 4114402 [2] Washer
27. 4631943 [1] Line
30. 4293950 [2] Fitting
30A. 957366 [1] O-Ring
35. 4716846 [1] Coupling
35A. FYB00000331 [1] Hub
35B. 4702173 [2] Set Screw
35C. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR 4101345
35D. 4682268 [4] Insert
35E. T108085 [4] Cap Screw SUB FOR 4183168
35F. 4682266 [1] Coupling
36. 8058352 [1] Gasket
37. 19M7489 [6] Cap Screw M16 X 45 SUB FOR J901645
38. 12H294 [6] Lock Washer 5/8" SUB FOR A590916
99. 4451036 [1] Seal Kit COMPONENTS ON SEPERATE PAGE

Coupling Information:

The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
