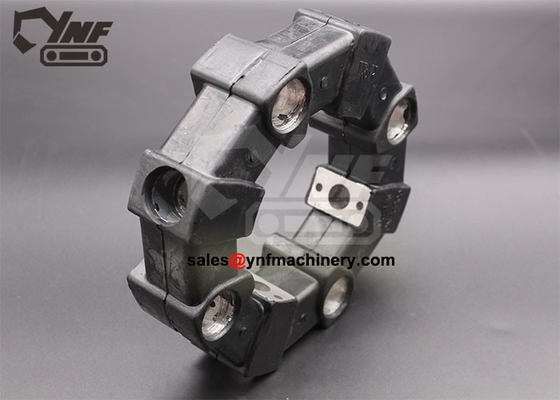

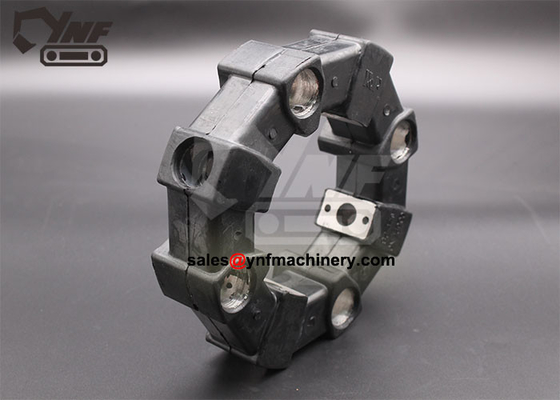

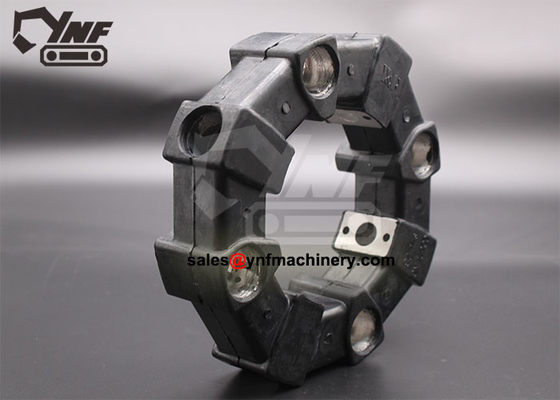

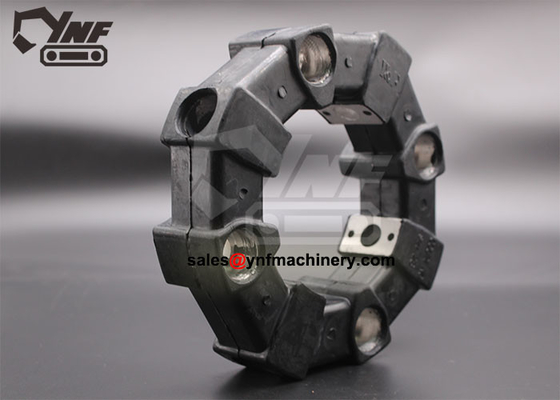

Natural Black Rubber Coupling Excavator Hydraulic Pump Parts For John Deere 245GLC

Natural Black Rubber Coupling Excavator Hydraulic Pump Parts For John Deere 245GLC

Description :

Products Show

Packaging & Delivery

More Parts Information:

Pos. Part No Qty Parts name Comments
0. FYB60000111 [1] Hydraulic Pump
1. 9302825 [1] Transmission
3. 9316776 [1] Pump
5. 4726029 [1] O-Ring
7. 19M7489 [10] Cap Screw M16 X 45 SUB FOR J901645
8. 12H294 [10] Lock Washer 5/8" SUB FOR A590916
10. ........ [1] Regulator COMPONENTS ON SEPERATE PAGE
11. ........ [1] Regulator COMPONENTS ON SEPERATE PAGE
12. ........ [1] Regulator COMPONENTS ON SEPERATE PAGE
25. 4625021 [1] Hose
26. 4154670 [2] Elbow Fitting SUB FOR A852322
26A. 957366 [1] O-Ring
32. 9217993 [1] Pump
33. 4153543 [1] O-Ring
35. 19M8337 [2] Screw M10 X 30 SUB FOR M341030
36. 12M7135 [2] Lock Washer 10 MM SUB FOR 984054
37. 4114402 [2] Washer
40. ........ [1] Plate
41. 37H99 [2] Screw 0.100" X 1/4" SUB FOR M492564
46. 4713245 [1] Coupling
46A. FYB00000293 [1] Hub
46B. 4702173 [2] Set Screw
46C. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR 4101345
46D. 4682268 [4] Insert
46E. T108085 [4] Cap Screw SUB FOR 4183168
46F. 4682266 [1] Coupling
50. 19M8231 [2] Cap Screw M12 X 16 SUB FOR J901216
51. 24M7047 [2] Washer 13 X 24 X 2.500 MM SUB FOR A590112

Coupling Information:

The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
