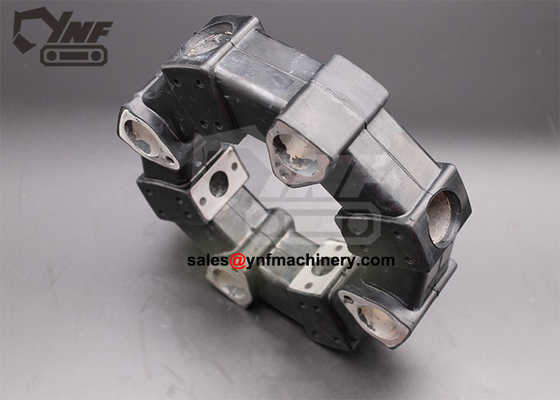

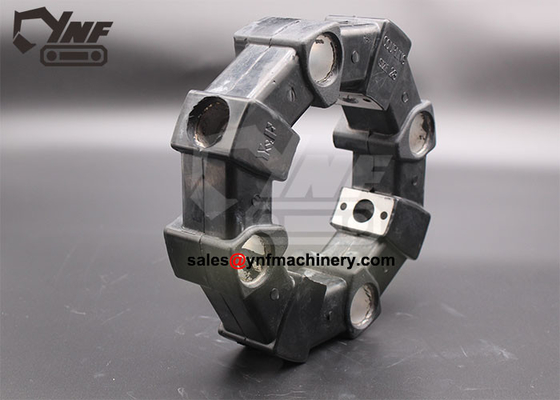

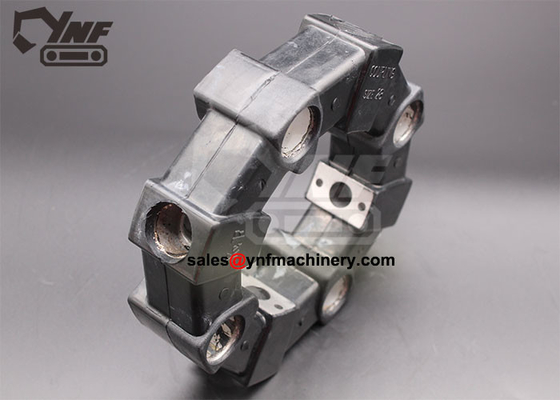

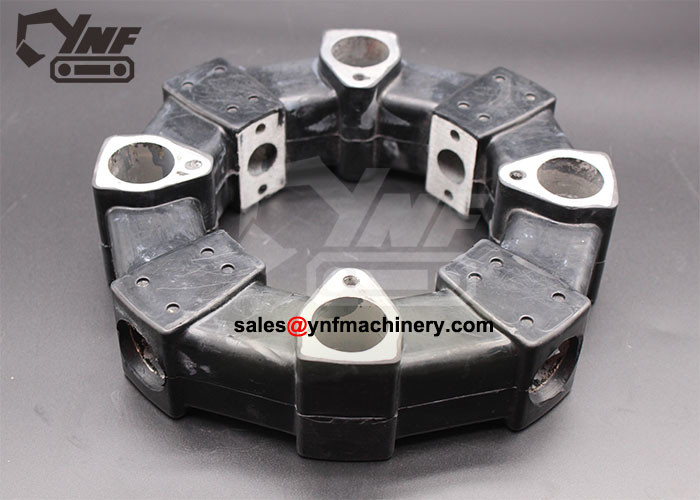

28A Size Excavator Coupling Natural Rubber Material For 270CLC
Natural Rubber Excavator Coupling
,270CLC Excavator Coupling
28A Size Excavator Coupling Natural Rubber Material For 270CLC
Description :
|
Means of Transport |
Ocean,Land,Air |
|
Specifiion |
Standard |
|
Coupling egory |
Rotary Couplings |
|
Feature |
High Durability |
|
Coupling Structure |
Helical Coupling |
|
Packing |
Standard package or as request |
|
Color |
Black |
|
Appliion |
Excavator |
|
Local Service Loion |
None |
Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
Pos. Part No Qty Parts name Comments
0. 9195237 [1] Hydraulic Pump NLA, (ORDER 9195237)
0. 9195237EX [1] Hydraulic Pump Reman (REMAN FOR 9195237)
1. ........ [1] Housing (SUB FOR (1) TH1027184)( 1027184 NLA)
3. 3063840 [1] Gear (SUB FOR AT202414)
4. 3055594 [1] Shaft (SUB FOR AT202412)
8. JD8514 [2] Ball Bearing
9. 962002 [1] Snap Ring (SUB FOR TH100483)
10. 40M7090 [1] Snap Ring
30. 3063842 [1] Gear (SUB FOR AT202415)
31. 3063843 [1] Gear (SUB FOR AT202416)
32. AT152406 [2] Snap Ring (SUB FOR AT203647, 4274552)
34. 34M7061 [2] Spring Pin 8 X 20 MM
43. 4310055 [1] Seal (K) (SUB FOR AT202443)
44. 40M7090 [1] Snap Ring
61. 4438059 [1] Dipstick (SUB FOR TH4438059)
62. 9743977 [1] Dipstick Tube (SUB FOR AT214406)
63. 9742779 [1] Gasket (K) (SUB FOR AT214401)
64. 19M7647 [2] Screw M8 X 16 (SUB FOR AT217709)
68. 4265372 [1] Sensor (SUB FOR AT154297)
69. 4306888 [1] O-Ring (K) (SUB FOR AT154310)
70. 24M7054 [1] Washer 6.400 X 12 X 1.600 MM
71. 19M8553 [1] Screw M6 X 16
74. 37H99 [2] Screw 0.100" X 1/4"
75. 4276918 [1] Pump (SUB FOR AT202122)
76. 19M8337 [2] Screw M10 X 30
77. 12M7135 [2] Lock Washer 10 MM (SUB FOR 12M6791)
78. 4114402 [2] Washer (SUB FOR TH102181)
79. 4369148 [1] Oil Line (SUB FOR AT214046)
80. 4293950 [2] Fitting (SUB FOR AT160584)
80A. M800650 [1] Packing (K)
81. FYB00000114 [1] Coupling (SUB FOR 4416605)
81A. 4702172 [1] Hub (SUB FOR 4463992 OR 4687331 ) (ALSO ORDER (2) 4702173)
81B. ........ [2] Set Screw (SUB FOR AT203651 OR 4334899 ) (USE WITH 4463992 OR 4687331 ) (SUB 4702173 ) (ALSO ORDER 4702172)( 4334899 NLA)
81B. 4702173 [2] Set Screw (USE WITH 4702172)
81C. 34M7117 [4] Spring Pin 5 X 10 MM
81D. 4463993 [4] Insert (SUB FOR TH4463993)
81E. 4334894 [4] Bolt (SUB FOR TH4334894)
81F. FYB00000115 [1] Housing SUB FOR 4654760
82. 8058352 [1] Gasket (K) (SUB FOR AT214350)
83. 19M7489 [6] Cap Screw M16 X 45
84. 12H294 [6] Lock Washer 5/8"
86. 4234782 [1] Plug (SUB FOR AT200990)
87. 15M7036 [1] Drain Plug (SUB FOR 0309805 AND 4092534 ) (ALSO ORDER CH11570)
87A. CH11570 [1] O-Ring (K)
97. 4451036 [1] Seal Kit SUB FOR TH4451036 (SUB FOR (1) TH4451036)(INCLUDES ALL (K) PARTS)
Coupling Information:
The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
