Manual Installation Coupling Excavator Engine Parts For John Deere 290GLC
Coupling Excavator Engine Parts
,290GLC Excavator Engine Parts
Manual Installation Coupling Excavator Engine Parts For John Deere 290GLC
Description :
Means of Transport |
Ocean,Land,Air |
Specifiion |
Standard |
Material |
Rubber,Iron |
After-sales Service |
Online Support |
Trademark |
YNF/Y&F |
Product Name |
FLEX Couplings |
Stock Situation |
Always In Stock |
Applicable Industries |
Machinery Repair Shops, Construction Works |
MOQ |
For many products, we don't have MOQ limited. |

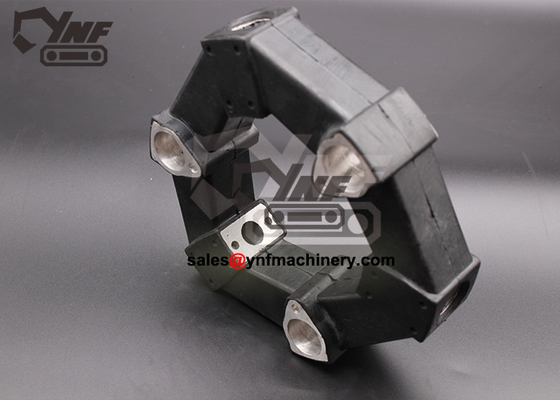

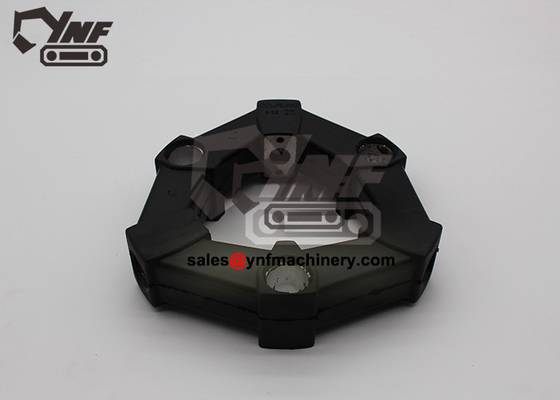

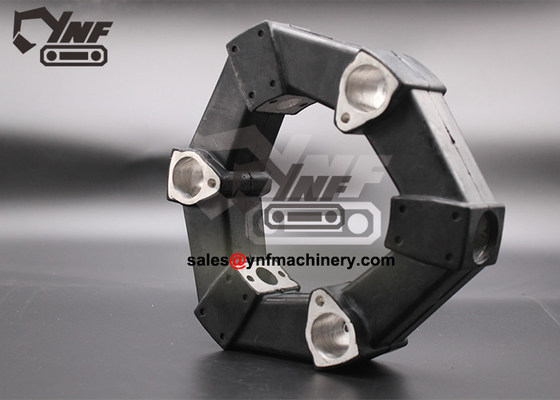

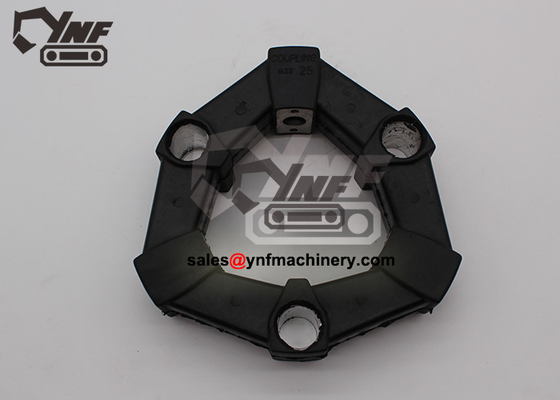

Products Show
Packaging & Delivery
Packaging Details: | Plastic bag, Carton |
Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
Pos. Part No Qty Parts name Comments
0. FYB60001365 [1] Pump SUB FOR FYB60000049
0. PG202088 [1] Hydraulic Pump Reman REMAN FOR FYB60000049 DOES NOT INCLUDE COUPLER
1. 1036984 [1]
3. ........ [1] Hydraulic Pump COMPONENTS ON SEPARATE PAGE
5. 3063840 [1] Gear
6. 3055594 [1] Shaft
10. 6008X [2] Ball Bearing SUB FOR (1) 958740
11. 962002 [1] Snap Ring
12. 40M7090 [1] Snap Ring SUB FOR (1) 991725
17. 9266176 [1] Pump COMPONENTS ON SEPARATE PAGE
18. FYB60000200 [1] Pump COMPONENTS ON SEPARATE PAGE
19. 9218005 [1] Pump COMPONENTS ON SEPARATE PAGE
19. A811085 [1] O-Ring
21. 19M8337 [2] Screw M10 X 30 SUB FOR (1) M341030
22. 12M6791 [2] Lock Washer 10.200 MM SUB FOR (1) 984054
23. 4114402 [2] Washer
27. 4631943 [1] Line
30. 4293950 [2] Fitting
30A. 957366 [1] O-Ring
33. FYB00000114 [1] Coupling
33A. 4702172 [1] Hub
33B. 4702173 [2] Set Screw
33C. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR (1) 4101345
33D. 4682268 [4] Insert
33E. T108085 [4] Cap Screw SUB FOR (1) 4183168
33F. FYB00000115 [1] Coupling
34. 34M7061 [2] Spring Pin 8 X 20 MM SUB FOR (1) 4099290
36. 8058352 [1] Gasket
37. 19M7489 [6] Cap Screw M16 X 45 SUB FOR (1) J901645
38. 12H294 [6] Lock Washer 5/8" SUB FOR (1) A590916
43. 4310055 [1] Seal
44. 40M7090 [1] Snap Ring SUB FOR (1) 991725
50. 4451036 [1] Seal Kit
61. FYB00001633 [1] Gauge SUB FOR 4438059
62. 9743977 [1] Dipstick Tube
63. 9742779 [1] Gasket
64. 19M7647 [2] Screw M8 X 16 SUB FOR (1) M340816
83. 15H621 [1] Elbow Fitting 3/4" SUB FOR (1) 94-0649
84. 4645330 [1] Plug
86. 4234782 [1] Plug
87. 15M7036 [1] Drain Plug SUB FOR (1) 4092534
87A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543" X 3/32") SUB FOR (1) 4509180
Coupling Information:
1. It has high elasticity (low stiffness, high flexibility), the rotation angle is 10 degrees when bearing the nominal torque, and 25 degrees when the maximum torque is applied, which can reduce the natural vibration frequency of the shaft system and change the torsional vibration characteristics of the shaft system of the diesel engine power plant. , so that the diesel engine does not appear dangerous resonance speed within the required speed range. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is fluctuating and prolong the service life of the gear.
2. It has good damping and vibration reduction characteristics, which can absorb part of the vibration energy, reduce the vibration amplitude when passing through the vibration point, and reduce the torsional vibration stress of the shaft section.
3. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is changed, and prolong the service life of the gear.
4. It can compensate for axis deviation. It is not only highly elastic in torsion, but also elastic in axial, radial and angular directions. It is easier to center during installation and can compensate for errors caused by deformation of the hull and machine base after installation. , to ensure the normal operation of the diesel engine and shafting.
5. It can realize vibration reduction and isolation of solid sound and insulation current of the base. After the diesel engine is installed with a vibration damping base, relative vibration occurs between it and the shaft system. Only when an elastic ring coupling that is elastic in the axial, radial and angular directions is installed, the damper can be installed under the main engine. Vibrating the base, at the same time, it can isolate solid sound and reduce noise. Since the elastic ring coupling adopts natural rubber components, it has good insulation performance and can prevent axial current.
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
