A/AS Excavator Coupling Hydraulic Pump Parts For 350GLC

Category:
Excavator Coupling
Price:
30-80usd/piece
Payment Method:
T/T, Western Union, MoneyGram
Specifications
Egory:
Shaft Coupling
Stock Situation:
Always In Stock
Selling Units:
Single Item
Supply Ability:
3000PCS Per Week
Feature:
Different Quality Level For Customers To Choose
Centaflex:
A/AS-Series
Inner Packing:
Base On Needs
Part No.:
4646894
High Light:

350GLC Excavator Coupling

,

Hydraulic Pump Excavator Coupling

Introduction


A/AS Excavator Coupling High Quality Hydraulic Pump Parts For 350GLC


Description :


Means of Transport

Ocean,Land,Air

Item

Spring Energized Seal

Material

Rubber,Iron

Feature

High Durability

Trademark

YNF/Y&F

Product Name

FLEX Couplings

Stock Situation

Always In Stock

Applicable Industries

Machinery Repair Shops, Construction Works

MOQ

1PCS



Products Show

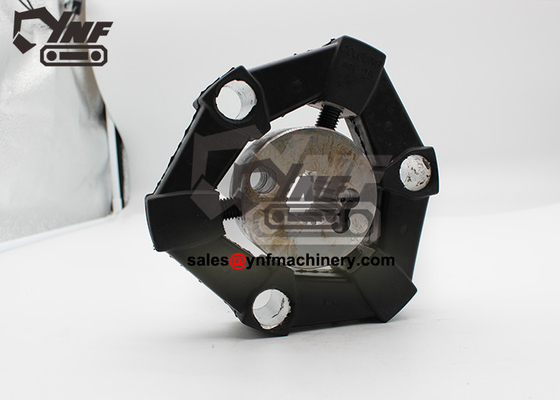

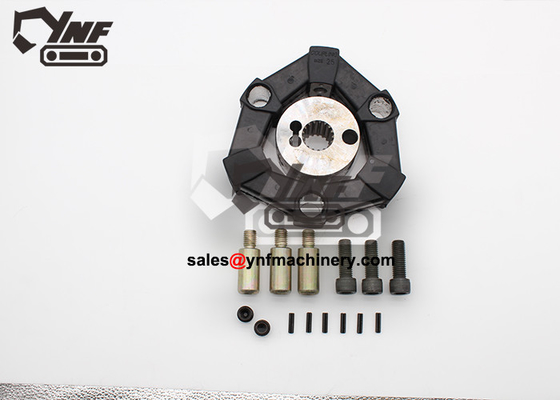

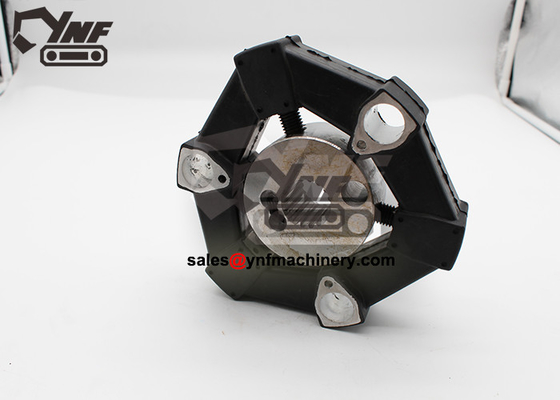

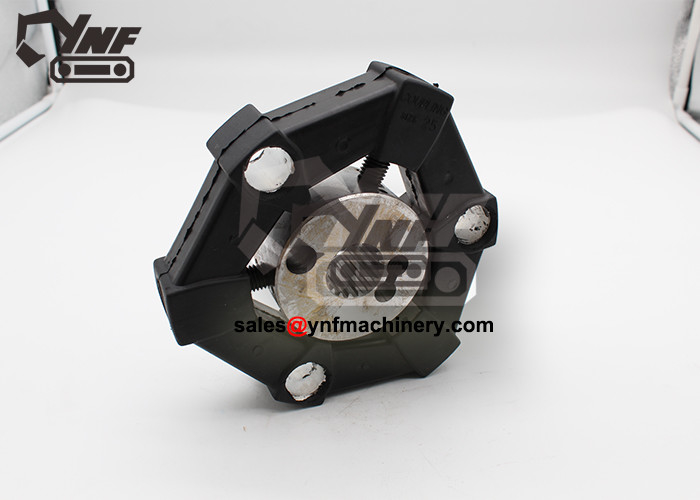

A/AS Excavator Coupling Hydraulic Pump Parts For 350GLC

A/AS Excavator Coupling Hydraulic Pump Parts For 350GLC


Packaging & Delivery


Packaging Details:Plastic bag, Carton
Delivery Detail:Within 3 workingdays after payment



More Parts Information:

Pos. Part No Qty Parts name Comments
0. 9257126 [1] Pump
2. 1033049 [1] Housing
4. 3104554 [1] Gear
5. 3081085 [1] Pinion Shaft
8. M804206 [1] Bearing SUB FOR (1) 4395453 OR (1) AT250102
9. 4720025 [1] Ball Bearing SUB FOR 4395457
10. 40M7120 [1] Snap Ring SUB FOR (1) TH106793 OR (1) 4191219
11. TH109453 [1] Seal SUB FOR (1) 4179833
12. 3033593 [1] Cover SUB FOR (1) TH109454
13. AT264339 [1] O-Ring SUB FOR (1) 4179834 OR (1) TH100122 OR (1) A811120
14. 40M7178 [1] Snap Ring SUB FOR (1) 991733
18. 19M8337 [2] Screw M10 X 30 SUB FOR (1) M341030
19. 9217993 [1] Pump PILOT PUMP COMPONENTS ON SEPARATE PAGE
20. 12M6791 [2] Lock Washer 10.200 MM SUB FOR (1) 984054
22. 4114402 [2] Washer SUB FOR (1) TH102181
23. 4191974 [1] Adapter Fitting SUB FOR (1) TH109459
23A. 4506418 [1] O-Ring
28. 3104555 [2] Gear
29. 40M7166 [2] Snap Ring SUB FOR (1) 991345
32. 9260885 [2] Hydraulic Pump FOR NON NORTH AMERICAN APPLIIONS ADDITIONAL COMPONENTS ON SEPARATE PAGE
32. PG200274 [2] Hydraulic Pump Reman FOR NORTH AMERICAN APPLIIONS REMAN FOR 9260885; SUB FOR (1) 9257309 AND (1) 9260886 ADDITIONAL COMPONENTS ON SEPARATE PAGES
35. 19M7489 [8] Cap Screw M16 X 45 SUB FOR (1) TH101724 OR (1) J901645
36. 4126090 [4] Sealing Washer
37. 12H294 [4] Lock Washer 5/8" SUB FOR (1) A590916
42. 4379582 [1] Cap SUB FOR (1) AT215108
43. 4646199 [1] Adapter Fitting
44. 15H621 [1] Elbow Fitting 3/4" SUB FOR (1) 94-0649
45. 4645330 [1] Plug
50. 4438889 [2] Oil Line SUB FOR (1) TH4438889
52. 4438888 [1] Oil Line
54. 4203485 [1] Fitting SUB FOR (1) TH109466
54A. M800650 [1] Packing SUB FOR (1) 957366
55. 3089617 [1] Oil Line
56. 3089618 [1] Oil Line SUB FOR (1) TH3089618
57. 4118499 [4] Elbow Fitting SUB FOR (1) TH101821
57A. M800650 [1] Packing SUB FOR (1) 957366
58. 4293950 [5] Fitting SUB FOR (1) AT160584
58A. M800650 [1] Packing SUB FOR (1) 957366
59. 4179843 [2] Clamp SUB FOR (1) TH109471
60. 19M7288 [1] Cap Screw M8 X 30 SUB FOR (1) J900830
61. 14M7273 [1] Nut M8 SUB FOR (1) M500807
62. 12M7065 [1] Lock Washer 8 MM SUB FOR (1) A590908
63. 4242263 [1] Dipstick SUB FOR (1) TH112088
64. 4242262 [1] Oil Tube SUB FOR (1) TH112089
65. 19M7647 [2] Screw M8 X 16 SUB FOR (1) AT217709 OR (1) M340816
66. 9742779 [1] Gasket SUB FOR (1) AT214401
68. 37H99 [2] Screw 0.100" X 1/4" SUB FOR (1) TH100069 OR (1) M492564
74. 4646894 [1] Coupling
74A. 4659040 [1] Retainer
74B. 22M7137 [2] Set Screw M16 X 16 SUB FOR (1) 4183170 OR (1) TH4183170
74C. 34M7117 [12] Spring Pin 5 X 10 MM SUB FOR (1) 4101345 OR (1) TH4101345 OR (1) TH105991
74D. 4655136 [4] Insert
74E. 4216949 [4] Screw SUB FOR (1) TH111404
74F. 4655135 [4] Insert
74G. 4216948 [4] Screw SUB FOR (1) TH111403
74H. 4655134 [1] Coupling
81. 15M7036 [1] Drain Plug SUB FOR TH109285, (1) TH101813 OR (1) 4092534
81A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543" X 3/32") SUB FOR (1) 4509180
90. 4471487 [1] Seal Kit

Coupling Information:
1. It has high elasticity (low stiffness, high flexibility), the rotation angle is 10 degrees when bearing the nominal torque, and 25 degrees when the maximum torque is applied, which can reduce the natural vibration frequency of the shaft system and change the torsional vibration characteristics of the shaft system of the diesel engine power plant. , so that the diesel engine does not appear dangerous resonance speed within the required speed range. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is fluctuating and prolong the service life of the gear.
2. It has good damping and vibration reduction characteristics, which can absorb part of the vibration energy, reduce the vibration amplitude when passing through the vibration point, and reduce the torsional vibration stress of the shaft section.
3. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is changed, and prolong the service life of the gear.
4. It can compensate for axis deviation. It is not only highly elastic in torsion, but also elastic in axial, radial and angular directions. It is easier to center during installation and can compensate for errors caused by deformation of the hull and machine base after installation. , to ensure the normal operation of the diesel engine and shafting.
5. It can realize vibration reduction and isolation of solid sound and insulation current of the base. After the diesel engine is installed with a vibration damping base, relative vibration occurs between it and the shaft system. Only when an elastic ring coupling that is elastic in the axial, radial and angular directions is installed, the damper can be installed under the main engine. Vibrating the base, at the same time, it can isolate solid sound and reduce noise. Since the elastic ring coupling adopts natural rubber components, it has good insulation performance and can prevent axial current.

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
