E235BSRNLC E235SR Excavator Coupling Excavator Parts
E235BSRNLC Excavator Coupling
,E235SR Excavator Coupling
E235BSRNLC E235SR Excavator Coupling Excavator Parts
Description :
| Material | Standard material |
| Part Name |
Hydraulic Pump Coupling |
| Tardmark | YNF/Y&F |
| Delivery Date |
2-3 days after receiving payment |
| Payment | T/T, Western Union, Paypal,Bank Transfer,Credit Card |
| Port | Guangzhou |
| Local Service Loion | None |
| Quality | High Quality |

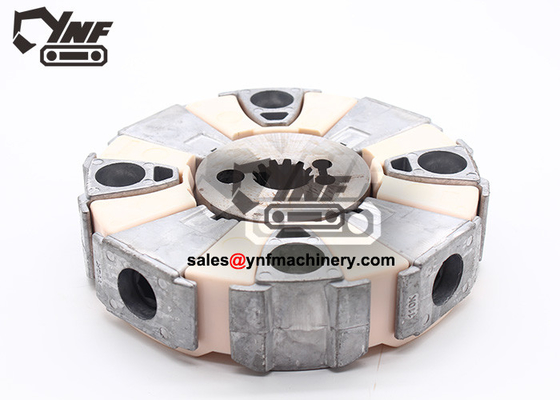

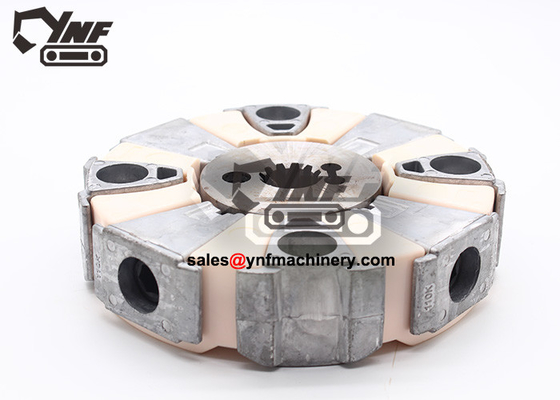

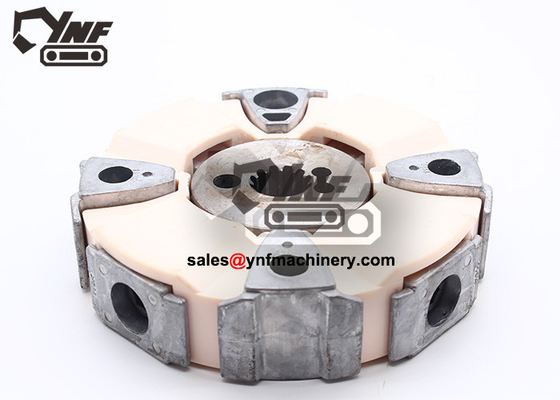

Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
Coupling Information:
1. It has high elasticity (low stiffness, high flexibility), the rotation angle is 10 degrees when bearing the nominal torque, and 25 degrees when the maximum torque is applied, which can reduce the natural vibration frequency of the shaft system and change the torsional vibration characteristics of the shaft system of the diesel engine power plant. , so that the diesel engine does not appear dangerous resonance speed within the required speed range. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is fluctuating, and prolong the service life of the gear.
2. It has good damping and vibration reduction characteristics, which can absorb part of the vibration energy, reduce the vibration amplitude when passing through the vibration point, and reduce the torsional vibration stress of the shaft section.
3. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is changed and prolong the service life of the gear.
4. It can compensate for the axis deviation. It is not only highly elastic in torsion, but also elastic in axial, radial and angular directions. It is easier to align during installation, and can compensate for errors caused by the deformation of the hull and machine base after installation. , to ensure the normal operation of the diesel engine and shafting.
5. It can realize vibration reduction and isolation of solid sound and insulation current of the base. After the diesel engine is installed with the vibration damping frame, relative vibration occurs between it and the shaft system. Only when the elastic ring coupling which is elastic in the axial, radial and angular directions can be installed, the damper can be installed under the main engine. Vibrating the base, at the same time, it can isolate solid sound and reduce noise. Since the elastic ring coupling adopts natural rubber components, it has good insulation performance and can prevent axial current.
