Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b

  • High Light

    flexible couplings

    ,

    shaft coupling

  • Material
    HTR
  • Machine Type
    Paver
  • Machine Model
    Mitsubishi MF-60B
  • Suit For
    Heavy Equipment Coupling
  • Brand
    YNF
  • Place of Origin
    CHINA
  • Brand Name
    Y&F
  • Model Number
    Lovejoy, Centaflex, KTR
  • Minimum Order Quantity
    5 SETS
  • Packaging Details
    Customized packing provided
  • Delivery Time
    usual 2-3 days after payment
  • Payment Terms
    T/T, Western Union, Escrow, Paypal
  • Supply Ability
    3000pcs/ month

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b



Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b


Product Descrition:

  •  Place of Origin: Guangdong, China (Mainland)

  •  Brand Name: Y&F

  •  Model Number: For Mitsubishi MF-60B

  •  Material: HTR

  •  Sales type: Retail, Wholesale

  •  Mark: According to customer needs

  •  Appliion: Construction machinery, ships, generators, compressors

  •  Quality: Controlstrict 100% test

  •  Mass production: Booking

  •  Available: In stock

Suit for Paver Mitsubishi MF-60B



Photos from customer:

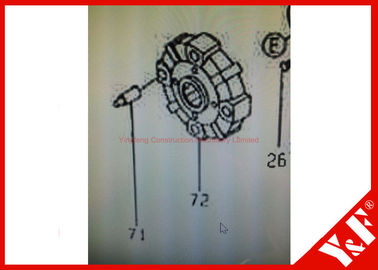

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 0



High Quality Clutch with High Temperature Rubber

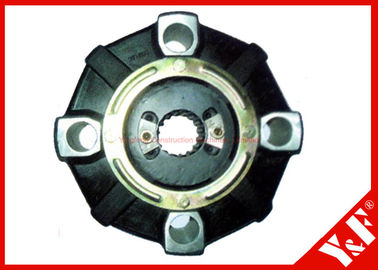

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 1



Also have the inner hub or gear of the coupling, you can notice us your hub dimension, we can check for you.

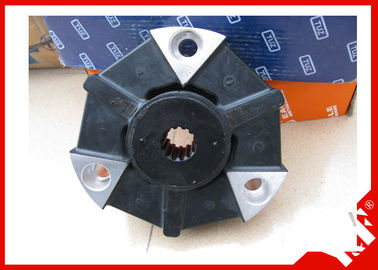

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 2







YNF manufactures flexible couplings, rubber and various other transmission products. This elastomer torsional coupling base element replaces the base element on Lovejoy LF series / Mkipulley Centaflex CF series torsional coupling assemblies. It is made of high temperature rubber (HTR) for transferring and absorbing shock load and reducing wear on both shafts.



Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 3

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 4







Our high quality material:



       1>Mikipulley Centaflex CF-A Series-----Natural Rubber(NR), High Temperature Rubber (HTR)

       2>Mikipulley Centaflex CF-H Series-----HTR, Hytrel

       3>Lovejoy LF series-----------------------NR, HTR, Hytrel

Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 5



Specifiions



      *Widely used in construction machines

      *Made of natural rubber, no unbearable smell
      *Over 25 years of industry experience





Assembly (When Using CENTA-LOCK)



(1) Press the spring pin into the cylindrical hub (except for coupling size 008), and then lock aluminum insert R into the cylindrical hub.

(2) Mount the cylindrical hub (clamping hub) onto the spline shaft, and then tighten the clamping screw to lock.

(3) a. Coupling sizes 008 and 016 Lock the bushing onto the flange hub (flywheel side). Push the element into the cylindrical hub.

      Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 6

b. Coupling sizes 030, 040, 050, 090, 110, 160, and 240 Press the spring pin into the flange hub (flywheel side), add aluminum insert A to the element, and then lock it to the flange hub (flywheel side).



         Centaflex Natural Rubber Fluid Couplings For Paver Mitsubishi Mf - 60b 7

Product Features:



·  For use with Lovejoy LF Series Torsional coupling assemblies (sold separately)

·  High temperature rubber (HTR) for transferring and absorbing shock load

·  Electrical isolating to prevent electrical arcing and circuit shortages

·  Attaches to flanged hub, flywheel adapter plate, or flywheel on engine side and cylindrical hub on driven equipment side

·  Flexes up to 3 degrees to compensate for angular misalignment of coupled shafts





Packaging & Shipping:



Packaging: Customized packing provided
Shipping: Port:Guangzhou
Delivery time: 1-2 days after received the payment
