Hydraulic Pump Mounting Hub Shaft Coupling For Engine Driven
Category:
Excavator Coupling
Price:
USD30-200
Payment Method:
T/T, Western Union, MoneyGram
Specifications
Material:
Steel
Size:
OD*ID*H Needed
Installation:
Pump Shaft
Performance:
Pump Drive
Used For:
Construction Machines
Warranty:
6 Months
High Light:
flexible couplings
,rubber couplings
Introduction

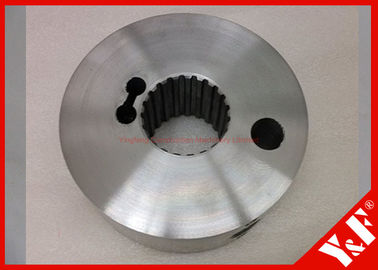

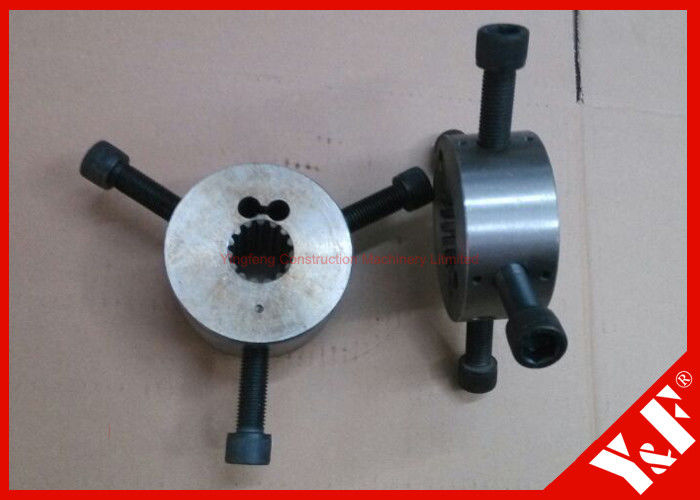

Hydraulic Pump Mounting Hub Shaft Coupling For Engine Driven
Data:
| Technical Data | |||||||||
| COUPLING “H” SERIES TECHNICAL DATA | |||||||||
| SIZE | 30H | 40H | 50H | 110H | 140H | 160H | |||
| TECHNICAL DATA | |||||||||
| DESCRIPTION | SYMBOL | UNIT | 500 | 600 | 800 | 1200 | 1600 | 2000 | |
| Nominal Torque | Tkn | Nm | |||||||
| Maximum Torque | Tkmax | Nm | 1400 | 1600 | 2000 | 2500 | 4000 | 4000 | |
| Maximum Rotational speed | Nmax | Min-1 | 4000 | 4000 | 4000 | 4000 | 3600 | 3600 | |
| COUPLING “A” SERIES TECHNICAL DATA | |||||||||
| SIZE | 4A/4AS | 8A/8AS | 16A/16AS | 25A/25AS | 30A/30AS | 50A/50AS | 140A/140AS | ||
| TECHNICAL DATA | |||||||||
| DESCRIPTION | SYMBOL | UNIT | 50 | 100 | 200 | 315 | 500 | 700 | 1700 |
| Nominal Torque | Tkn | Nm | |||||||
| Maximum Torque | Tkmax | Nm | 125 | 280 | 560 | 875 | 1400 | 2100 | 8750 |
| Maximum Rotational speed | Nmax | Min-1 | 7000 | 6500 | 6000 | 5000 | 4000 | 4000 | 3600 |
Product show:
Hydraulic Motor Repair Kits and Reduction for Swing and Track fix BRAND Komatsu, Mitsubishi, Isuzu, Yanmar, Hino, Cummins, , Hitachi, Kobeco, VOL-VO, Kato, Sumitomo, Daewoo, Hyundai, JCB, etc
Hitachi Excavator Coupling Parts Number:
| 4325230 | 4310056 | 4101345 | 4334891 | 4101345 | 4183166 |
| 4268718 | 4340960 | 4334892 | 4366376 | 4325600 | 4183168 |
| 4101345 | 4334899 | 4334894 | 4334899 | 4095325 | 4183165 |
| 3056607 | 4101345 | 4334891 | 4101345 | 4325601 | 4235766 |
| 4406749 | 4334892 | 4239375 | 4334892 | 4095325 | 4310056 |
| 4091497 | 4334894 | 4340960 | 4334894 | 4325602 | 4340960 |
| 4239375 | 4334891 | 4334899 | 4334891 | 4183171 | 4334899 |
| 4310565 | 4340275 | 4101345 | 4207540 | 4183170 | 4101345 |
| 3023434 | 4366376 | 4334892 | 4325598 | 4183167 | 4334892 |
| 4095325 | 4334899 | 4334894 | 4325599 | 4183169 | 4334894 |
| 4216948 | 4216948 | 4183170 | 4314298 | 4183165 | 4101345 |
| 4655134 | 4216944 | 4101345 | 4118705 | 4262327 | 4183166 |
| 4655136 | 4199663 | 4216947 | 4314298 | 4314298 | 4183168 |
| 4659040 | 4216949 | 4216949 | 4314298 | 4341223 | 4183165 |
| 4183170 | 4655135 | 4216946 | 4191663 | 4334902 | 4216945 |
| 4334891 | 4183171 | 4183167 | 4183168 | 4118705 | 4101345 |
| 4310056 | 4183170 | 4183169 | 4183166 | ||
| Hyundai Excavator Coupling Parts Number | |||||
| 11N7-10010 | 11N1-10010 | 13E6-16010 | S109-160506 | 11E1-1507 | 11E1-1511 |
| 11N7-10020 | 11N1-10030 | 13E6-16030 | S107-160402 | 13E6-16040 | S472-500102 |
| 11N7-10030 | 11M8-10030 | 11E1-1507 | 11E1-1511 | 11E1-1508 | S107-160402 |
| 11N7-10040 | 11M8-10040 | 13E6-16040 | S472-500102 | 11E1-1509 | 11EM-12040 |
| 11N7-10050 | 11M8-10050 | 13E6-16020 | S109-160606 | 13E6-16050 | 11E1-1508 |
| S109-18060D | S109-140406 | 11E1-1509 | S107-160602 | 11E1-1510 | 13E6-16040 |
| S109-18055D | 11M8-10060 | 13E6-16050 | 11E3-1503 | 13E6-16060 | 13E6-16050 |
| 11N7-10060 | S472-500106 | 11E1-1510 | 11EM-12020 | S109-160606 | 13E6-16060 |
| S472-500102 | S472-500226 | 13E6-16060 | 11EM-12030 | S107-160602 | S107-160402 |
| Kobelco Excavator Coupling Parts Number | |||||
| PH30P01002F1 | LF30P01001F1 | 24100U341F1 | 2418U225F2 | 2418U224F2 | 2418U224F2 |
| PH30P01002S001 | LF30P01001S001 | 24100U341S1 | 2418U225S1 | 2418U224S2 | 2418U224S2 |
| PH30P01002S002 | 2418U128S5 | 2418U128S5 | 2418U225S2 | 2418U162S2 | 2418U162S2 |
| PW30P01002S003 | ZP26D05010 | ZP26D05010 | 2418U162S2 | 2418U128S5 | 2418U128S5 |
| PY30P01003S004 | ZS73C16025 | 2418P23473 | 2418U128S5 | 2418U162S3 | 2418U162S3 |
| PY30P01003S006 | ZS73C20025 | ZS23C16035 | 2418U162S3 | ZP26D05010 | ZP26D05010 |
| ZS18C10045 | 2418P19271 | ZS18C10035 | ZP26D05010 | 2418U224S7 | 2418U224S7 |
| Komatsu Excavator Coupling Parts Number | |||||
| 20D-01-18130 | 20X-01-21120 | 203-01-61190 | 20X-01-21130 | 203-01-67160 | 208-38-11120 |
| Sumitomo Excavator Coupling Parts Number | |||||
| KNJ1050 | KNJ1050 | KRJ3450 | KRJ6318 | KSJ777 | KSJ1777 |
| KNJ0949 | KNJ0186 | KRJ3451 | KRJ6320 | KHN0296 | KHN0296 |
| 108R016Y050R | 108R016Y050R | KRJ2657 | KRJ6321 | KSJ1901 | KSJ1901 |
| 338W050Z010B | 338W050Z010B | KSJ2664 | KRJ6322 | KTJ1419 | KTJ1419 |
| KSJ2875 | KTJ1418 | KSJ2665 | 152B020Y030N | 338W080Z016B | 338W080Z016B |
| KSJ2666 | KSJ2582 | KSJ2666 | KTJ1418 | 152B020Y030N | |
| Y&F Rubber coupling | |||||
| Doosan Excavator Coupling Parts Number | |||||
| 414-00045 | 414-00044 | 2414-9021 | 2414-9025 | 2414-9021 | 2414-9034 |
| 414-00045A | K9000419 | 2474-7009 | 2474-7009 | 2474-7009 | K9000426 |
| K9000415 | K9000421 | K9000422 | K9000422 | K9000422 | K9000425 |
| K9000417 | 2414-9042 | 2414-9008A | 2414-9041 | 2414-9009A | 414-00040A |
| 2414-9040 | K9000426 | K9000426 | K9000426 | K9000994 | K9000994 |
| 414-00040 | 414-00041 | 414-00041A | |||
| excavator Coupling Parts Number | |||||
| 093-4195 | 099-0144 | 7Y-0609 | 099-6095 | 085-7572 | 8U-0951 |
| 093-5979 | 093-0278 | 095-0879 | 1R-7566 | 099-8109 | 8U-0952 |
| 093-5979 | 096-3973 | 099-6097 | 1R-7567 | 099-8112 | 5W-1245 |
| 099-0149 | 8T-0348 | 096-4212 | 1R-7568 | 099-8110 | 8U-0953 |
| 093-5979 | 093-0288 | 8T-4121 | 1R-7569 | 099-8111 | 5W-2338 |
| 094-1466 | 096-1848 | 8T-4195 | 095-0879 | 7Y-1350 | 8T-0348 |
| 096-3973 | 096-1848 | 8T-4136 | 094-6377 | 6W-3988 | 6W-3989 |
| 094-1466 | 099-5534 | 099-6094 | 099-5666 | 190-5846 | 6W-1958 |
| 099-6094 | 093-6867 | 1R-7565 | 8U-0950 | 6W-3990 | 099-6444 |
| 7Y-1902 | 7Y-0466 | 7I-7678 | 7Y-0468 | 7Y-1904 | 124-1665 |
| 6W-3988 | 7Y-0466 | 099-0144 | 6I-6426 | 8T-0348 | 7Y-1900 |
| 6W-3988 | 8T-0348 | 7Y-1905 | 099-0149 | 255-2940 | 7Y-1901 |
| 6W-3988 | 109-9248 | 7Y-0466 | 099-0144 | 266-6280 | 7Y-1902 |
| 093-0288 | 099-0149 | 8T-0348 | 7Y-0466 | 7Y-0468 | 7Y-1904 |
| 248-7284 | 099-0149 | 7Y-0466 | 266-6280 | 190-5846 | 7Y-0468 |
| 7Y-0466 | 099-0144 | 8T-0348 | 7Y-0466 | 132-7721 | 6I-6426 |
| 7Y-0468 | 4I-7360 | ||||
