Boom Ram Hydraulic Cylinder Seal Kit 295-9894 2959894 For erpillar 330B L 330C FM 330D FM 568 FM LL M330D
Hydraulic Cylinder Seal Kit 295-9894
,Boom Ram Hydraulic Cylinder Seal Kit
,330C Hydraulic Cylinder Seal Kit
SKU: YNF12209
Part number: 295-9894 2959894
Machine model: 330B L, 330C FM, 330D FM, 568 FM LL, M330D
Excavator Brand: erpillar,
Boom Ram Seals Hydraulic Cylinder Seal Kit 295-9894 2959894 Fits For erpillar 330B L 330C FM 330D FM 568 FM LL M330D
Alternative (cross code) number:
CA2959894
295-9894
2959894
Compatible equipment models: 2959894:
EXCAVATOR 330B L 330C FM 330D FM 568 FM LL
WHEELED EXCAVATOR M330D erpillar
Parameter:
Parts for your 330B L EXCAVATOR:
ERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 132-7896 | [1] | CYLINDER AS (BOOM) | |
| 1A. | 103-5348 | [1] | BUSHING | |
| 2 | 7Y-4956 M | [1] | LOCKNUT (M90X2-THD) | |
| 3 | 7I-7181 | [1] | PISTON | |
| 4 | 7I-7894 | [1] | STOP | |
| 5 | 095-1726 J | [1] | SEAL-O-RING | |
| 6 | 7Y-4945 J | [1] | RING-BACKUP | |
| 7 | 358-8521 | [1] | HEAD | |
| 8 | 369-0578 | [1] | ROD AS | |
| 8A. | 105-2659 | [1] | BUSHING | |
| 9 | 105-7262 J | [1] | RING-WEAR | |
| 10 | 9X-3607 J | [1] | SEAL AS | |
| 11 | 096-5609 J | [1] | RING | |
| 12 | 6I-6785 | [1] | RING-SEAL | |
| 13 | 7Y-5239 M | [8] | BOLT-SOCKET HEAD (M24X3X100-MM) | |
| 14 | 165-9291 J | [1] | SEAL-LIP TYPE | |
| 15 | 7Y-4941 J | [1] | RING-BACKUP | |
| 16 | 170-9865 J | [1] | SEAL-U-CUP | |
| 17 | 128-9266 J | [1] | SEAL-BUFFER | |
| 18 | 114-0761 | [1] | BUSHING | |
| 19 | 7Y-4944 | [1] | RING-RETAINING | |
| 20 | 8T-8379 J | [1] | SEAL-HEAD | |
| AVAILABLE REPAIR KIT(S): | ||||
| 295-9894 J | [1] | KIT-SEAL (BOOM CYLINDER) | ||
| J | KIT MARKED J INCLUDES PART(S) MARKED J | |||
| M | METRIC PART | |||

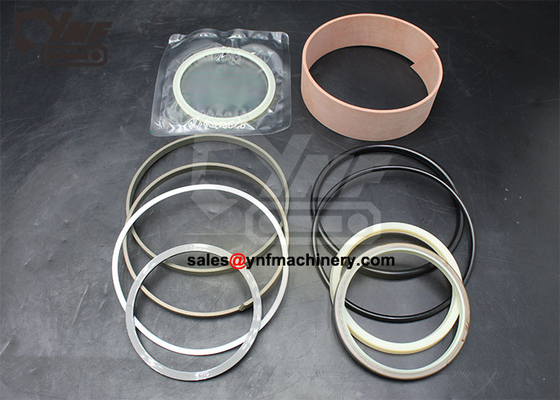

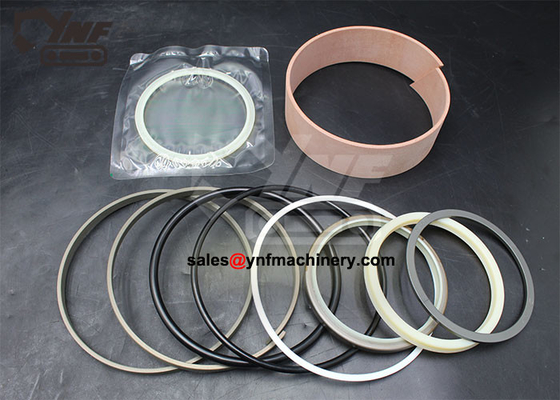

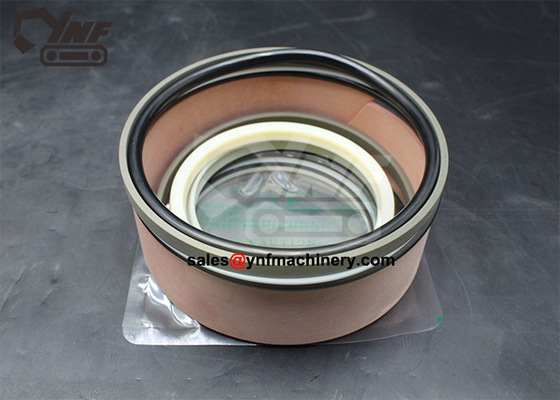

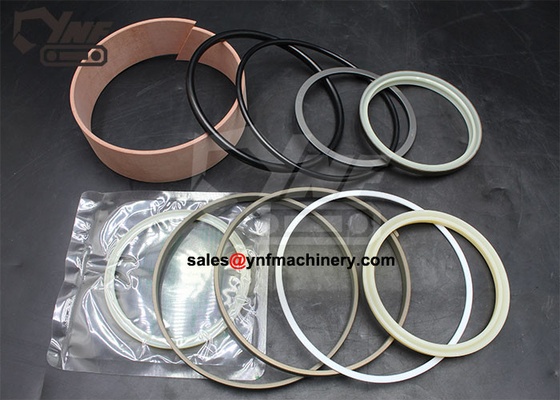

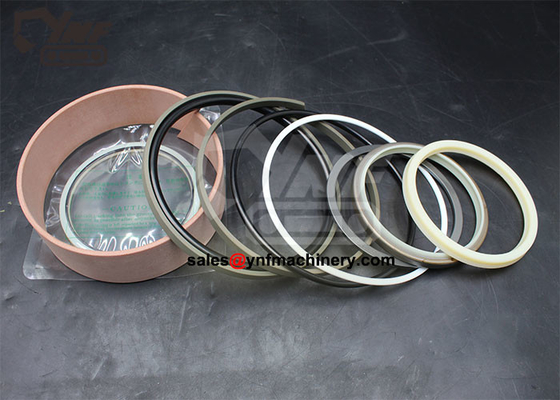

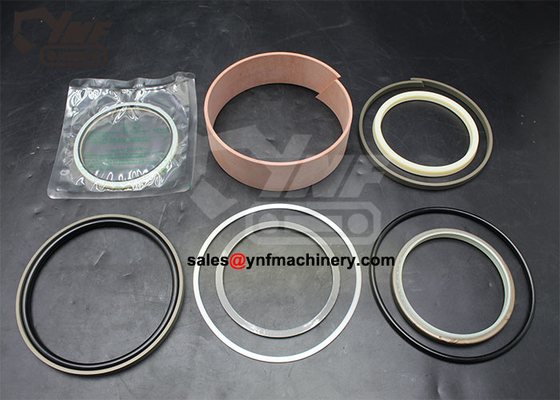

Product Photos:
What properties do you need to have to be called a high-quality oil seal?
Oil seal is a kind of industrial sealing product. It is mainly used to prevent the leakage of internal media and the erosion of external dust and impurities. Its quality directly affects the use of equipment. Therefore, it is very important to choose a high-quality oil seal product. What properties should it have? Can be called a high-quality oil seal Bailuxing tells you
Good sealing effect. Even in some harsh working conditions, it can also play a good role in sealing, reducing the leakage of equipment and the frequency of occurrence.
Has low frictional resistance. In order to avoid equipment failure, the oil seal needs to have stable friction and low friction resistance.
Has good media compatibility. Because the oil seal may be in a medium such as hydraulic oil for a long time, it is easy to encounter problems such as expansion, dissolution, embrittlement, etc., so it must have good compatibility to prevent it from losing its sealing effect.
Has good physical and mechanical properties. For example, elasticity, heat resistance, wear resistance, etc., can effectively prolong the service life of the oil seal.
In addition, the production process should be fine, not only beautiful in appearance but also free of defects such as burrs.
