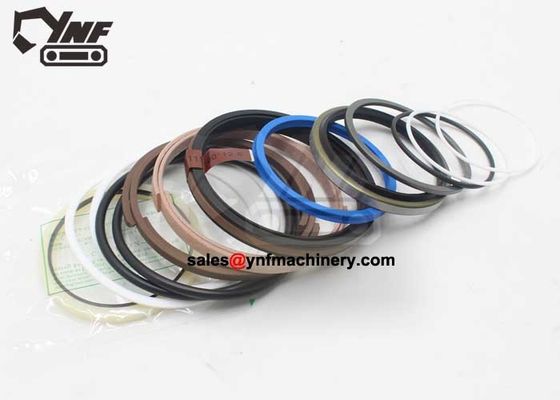

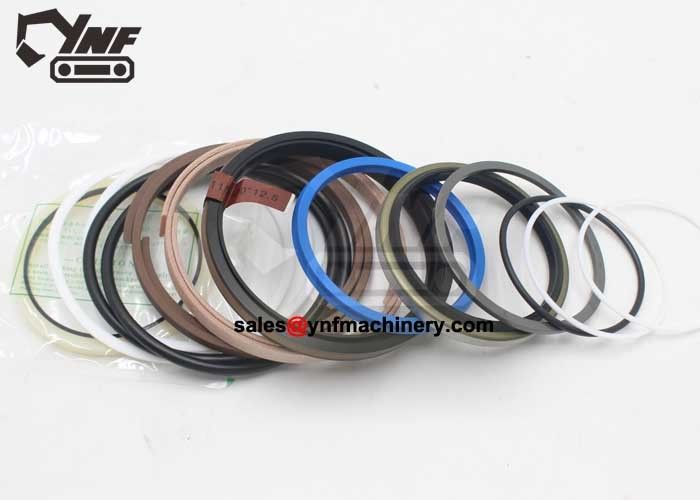

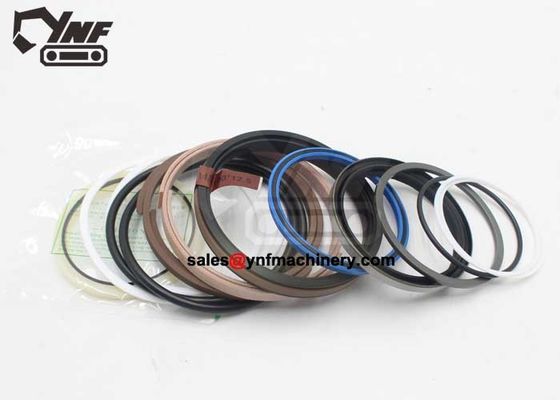

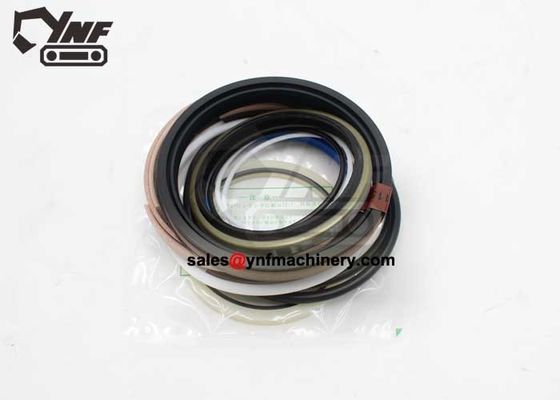

R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
Category:
Excavator Seal Kits
Price:
contact our sales
Payment Method:
T/T, Western Union, MoneyGram
Specifications
Part Number:
31Y1-20430
Application:
Excavator
Color:
Black, Red, White
Durability:
High Durability
Lifespan:
Long Lifespan
MOQ:
1 Piece
Material:
Rubber, Metal, Plastic
Packaging:
Carton Box
Pressure:
High Pressure
Product Name:
Excavator Seal Kits
Size:
Various Sizes
Temperature:
High Temperature
Weight:
Varies
High Light:
R160-7 Cylinder Seal Kit
,R160LC-7 Cylinder Seal Kit
,Excavator Boom Cylinder Seal Kit
Introduction
Parts on group BOOM CYLINDER:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | 31N5-50110 | [1] | CYLINDER ASSEMBLY,LH | |
| *. | 31N5-50120 | [1] | CYLINDER ASSEMBLY,RH | |
| *-1. | 31Y1-20380 | [1] | BOOM CYL SUB ASSEMBLY | WITHOUT PIPE |
| 1. | 31Y1-20350 | [1] | TUBE ASSEMBLY | |
| 2. | 31Y1-04090 | [1] | ROD ASSEMBLY | |
| 3. | 31Y1-04120 | [1] | GLAND | |
| 4. | S732-080040 | [1] | BUSHING | |
| 5. | Y191-086000 | [1] | RING-SNAP | |
| K6. | Y200-080011 | [1] | SEAL-ROD | |
| K7. | Y180-080020 | [1] | RING-BACK UP | |
| K8. | Y240-080011 | [1] | RING-BUFFER | |
| K9. | Y110-080011 | [1] | WIPER-DUST | |
| 10. | Y190-094000 | [1] | RING-SNAP | |
| K11. | S631-105004 | [2] | O-RING | |
| K12. | S641-105002 | [1] | RING-BACK UP | |
| K13. | S641-105003 | [1] | RING-BACK UP | |
| 14. | 31YC-21050 | [1] | RING-CUSHION | |
| 15. | 31Y1-03660 | [1] | PISTON | |
| K16. | S632-070004 | [1] | O-RING | |
| K17. | S642-070003 | [2] | RING-BACK UP | |
| K18. | Y420-115000 | [1] | SEAL-PISTON | |
| K19. | Y310-115000 | [2] | RING-WEAR | |
| K20. | Y440-115000 | [2] | RING-DUST | |
| 21. | 31YC-61050 | [1] | NUT-LOCK | |
| 22. | S109-180604 | [9] | BOLT-SOCKET | |
| 28. | 31YC-11075 | [1] | BUSHING-PIN | |
| 29. | 31YC-11085 | [1] | BUSHING-PIN | |
| 30. | S700-075205 | [2] | SEAL-DUST | |
| 31. | Y000-070200 | [2] | SEAL-DUST | |
| 23. | 31Y1-04130 | [1] | BAND ASSEMBLY-LH | |
| 23. | 31Y1-04020 | [1] | BAND ASSEMBLY-RH | |
| 23-1. | 31Y1-04140 | [1] | BAND SUB ASSEMBLY,LH | |
| 23-1. | 31Y1-041R0 | [1] | BAND SUB ASSEMBLY-RH | |
| 23-2. | 31YC-32020 | [1] | BAND | |
| 23-3. | S071-022730 | [2] | U-BOLT | |
| 23-4. | S011-100352 | [4] | BOLT-HEX | |
| 23-5. | S201-101002 | [4] | NUT-HEXAGON HEAD | |
| 23-6. | S411-100002 | [8] | WASHER-SPRING | |
| 24. | 31Y1-20390 | [1] | PIPE ASSEMBLY-R,LH | |
| 24. | 31Y1-20400 | [1] | PIPE ASSEMBLY-R,RH | |
| 25. | 31Y1-20410 | [1] | PIPE ASSEMBLY-B,LH | |
| 25. | 31Y1-20420 | [1] | PIPE ASSEMBLY-B,RH | |
| K26. | Y171-019004 | [2] | O-RING | |
| 27. | S107-100454 | [8] | BOLT-SOCKET HEAD | |
| K. | 31Y1-20430 | [1] | SEAL KIT |
SEE ILLUST
|
- MODEL APPLIED: Replacement part boom seal kits 31Y1-20430 for Hyundai R180LC-7 excavator parts
- MATERIAL PROPERTIES: Resistance to Friction and Wear, Weather Resistance, Oil Resistance, Non-toxic, Safety and Long-Time Uses, High and Low Pressure Resistance.
- EASY INSTALLATION: YNF excavator seal kit parts are built to OEM specifications and testing. Match your digging excavator machine perfectly!
- FAST DELIVERY: The R180LC-7 boom Seal kit will be shipped in the fastest way.
- R160LC-7, R160LC-7A Adj Boom LH Cylinder# 31N5-52911
- R160LC-7, R160LC-7A Adj Boom RH Cylinder# 31N5-52921
- R160LC-7, R160LC-7A Boom LH Cylinder# 31N5-50110
- R160LC-7, R160LC-7A Boom RH Cylinder# 31N5-50120
- 80mm Rod x 115mm Bore
- Includes Wiper, U seal, Buffer seal, and 4 pc Capped T seals
- Hyundai HCE SEAL KIT 31Y1-20430 genuine, new aftermarket tractor parts with delivery
R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A
